PVC Corrugated Sheet Machine

1.Product Description

Equipment configuration Of The PVC Corrugated Sheet Machine:

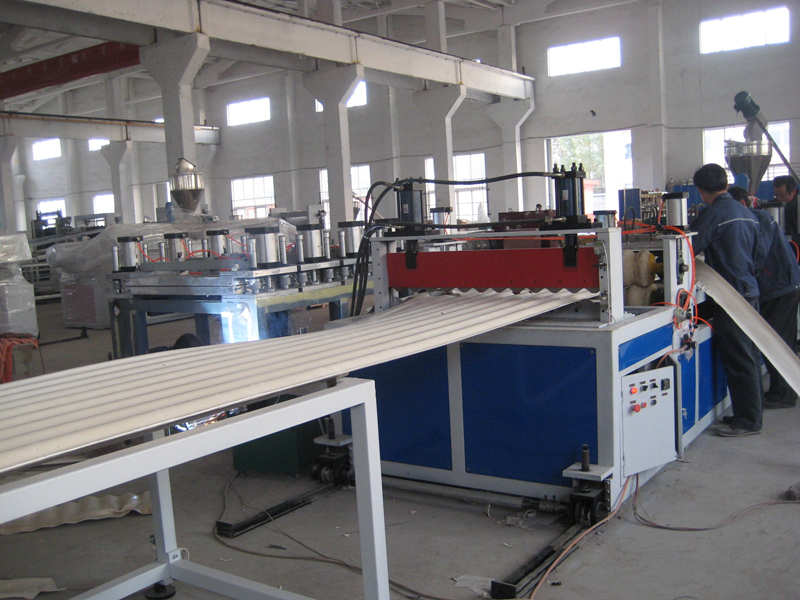

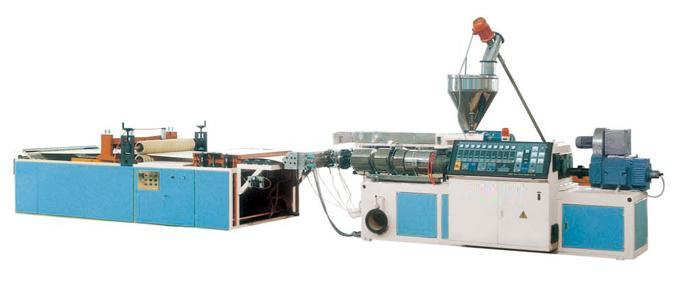

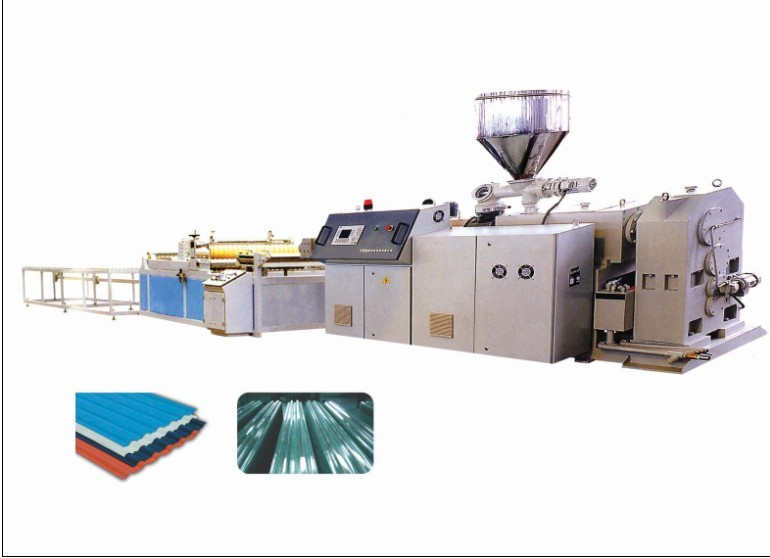

The PVC wave sheet production line mainly consists of a conical twin-screw extruder, forming device, cooling system, traction cutting equipment, etc., and can achieve continuous production. Taking the SJSZ-65*22 production line of Qingdao Hainachuan Plastic Machinery Co., Ltd. as an example, its main machine adopts a hanger-type flat die head (L = 1000mm), the forming device supports two specifications: large waves (R = 15mm, h = 16.5mm, wave pitch 63mm) and small waves (R = 9mm, h = 8mm, wave pitch 36mm), and achieves shaping through water cooling. The production line of Qingdao Xindacheng Plastic Machinery is equipped with a PLC intelligent control system, featuring automatic frequency adjustment, roller pressing one-time forming and high-precision cross-cutting control functions, capable of producing single-layer, double-layer or multi-layer sheets, with high cutting accuracy and low noise.

2.Product Parameter(Specification)

Specifications and models of the PVC Corrugated Sheet Machine:

3.Product Feature And Application

Product Feature of the PVC Corrugated Sheet Machine:

Equipment performance: The production line has a high degree of automation. For example, the steel sheet rolling equipment uses rubber traction rollers to prevent product scratches, and the rotating encoder (of the Otomonix brand) precisely controls the cutting length, supporting custom specifications such as 8 meters, 10 meters, and 12 meters; Qingdao Xindacheng's temperature control system can reduce energy consumption and improve product quality stability.

Product features: The produced PVC wave tiles have advantages such as resistance to acid and alkali corrosion (with a lifespan of 30 years), impact resistance (no damage when a 1-kilogram iron ball falls from 1.5 meters), fire resistance and flame retardancy (B1 grade), a light transmittance of 20%-30%, and a sound insulation effect of 35%-50%. Moreover, they do not contain asbestos and are environmentally friendly materials.

4.Production Details

A description of the length and materials of the PVC Corrugated Sheet Machine:

1) Product width: 1200mm

2) Product thickness: 0.8-3mm

3) Output: 300kg/h
