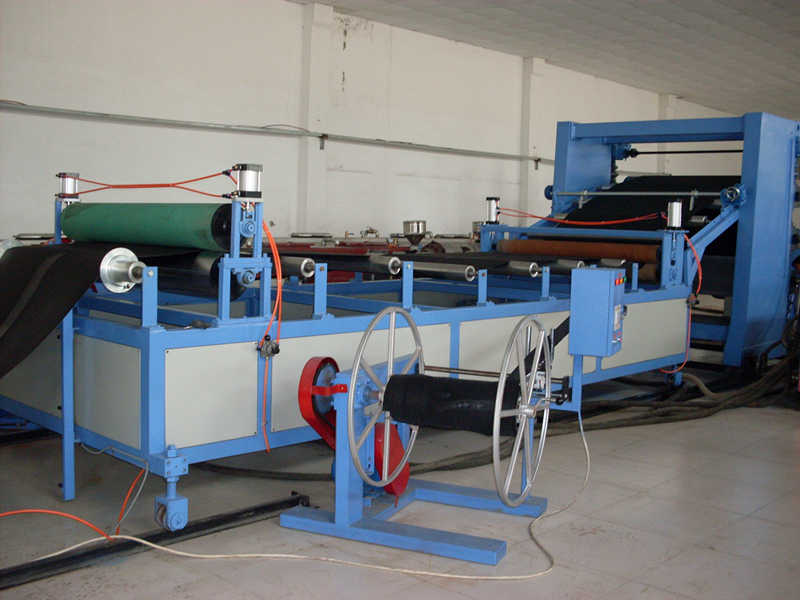

Plastic Geocell Extrusion Line

1.Product Description

Core Components Of The Plastic Geocell Extrusion Line:

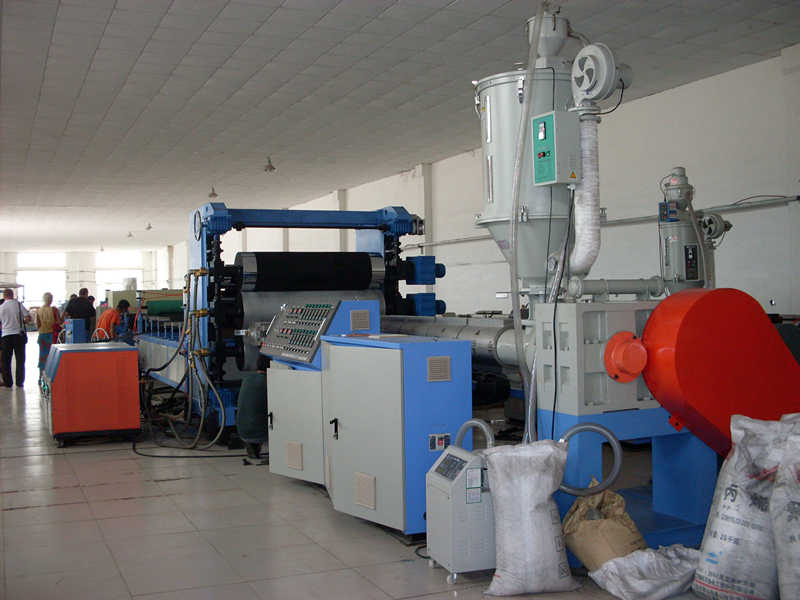

1. Extrusion system

· Utilizing an efficient single-screw extruder, the raw materials of polypropylene (PP) or high-density polyethylene (HDPE) are melted and then extruded into the base plate through a grid-like flat template.

· Some high-end models are equipped with a dual-machine supply system, allowing independent control of the extrusion parameters in both the longitudinal and transverse directions.

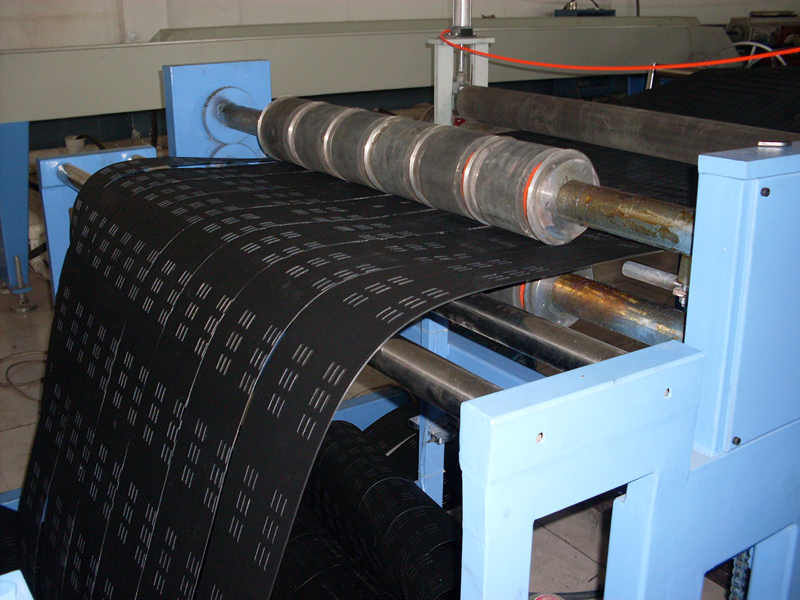

2. Punching and stretching device

· The high-precision punching device forms a regular mesh pattern on the base plate, followed by the completion of directional strengthening through a multi-roller longitudinal stretching system (oil temperature control) and a variable-width transverse stretching system.

3. Automation control

· The intelligent temperature control and real-time monitoring system ensures material uniformity, with a production speed of up to 16 meters per minute, which is twice that of traditional equipment.

· The automatic winding and cutting system enables continuous production.

2.Product Parameter(Specification)

Specifications and models of the Plastic Geocell Extrusion Line:

3.Product Feature And Application

Product Application of the Plastic Geocell Extrusion Line:

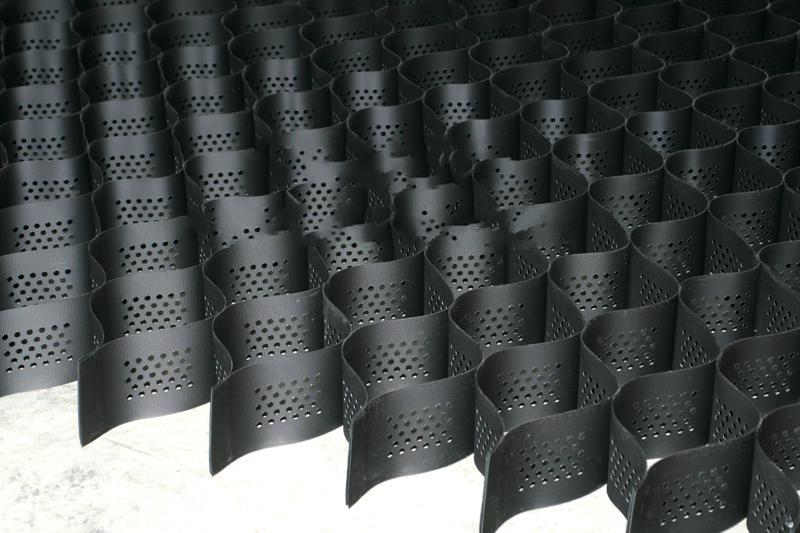

·Application adaptability: It can produce unidirectional (for roadbeds) or bidirectional (for airport foundations) grids, and the grid structure forms a three-dimensional reinforcement effect with the soil.

·Civil Engineering: Strengthening of highway and railway roadbeds, slope protection.

·Mining: As an alternative to metal nets as support materials for false roofs in coal mines.

·Environmental protection field: Reducing the thickness of the cushion layer and reducing the amount of construction waste.

4.Production Details

A description of the length and materials of the Plastic Geocell Extrusion Line:

1.5mm max thickness of geocell

1.6m max net width of geocell

250kg/h max output
