Production Process Flow of HDPE Drainage Sheet Machine:
1. Raw material preparation， Use HDPE granular materials, both brand-new and recycled materials are acceptable.
2. Extrusion molding， The raw materials are melted and extruded through a screw extruder to form the initial shape of the sheet.

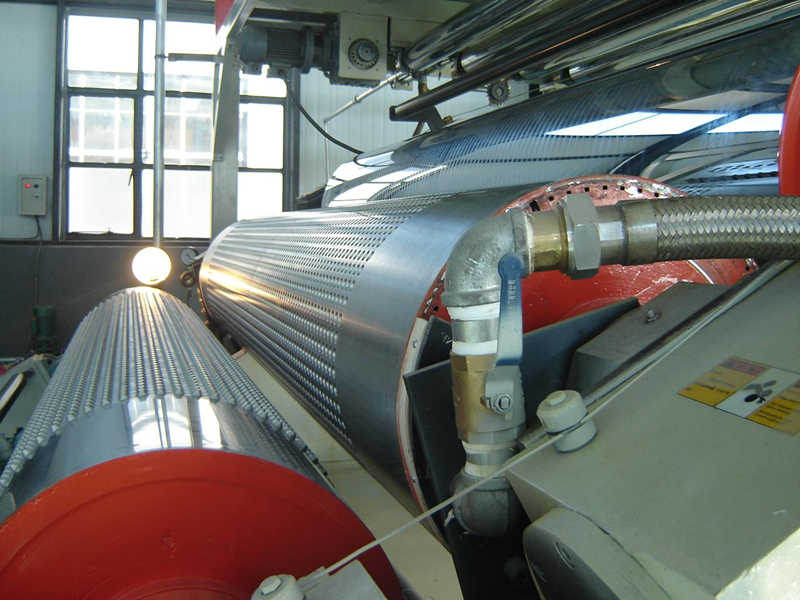

3. Vacuum forming， By using concave-convex rollers for vacuum forming, the sheet material is given specific shapes, such as conical, columnar, and spherical shells.
4. Cooling and shaping， By using methods such as circulating water cooling, the sheet is rapidly cooled and shaped.

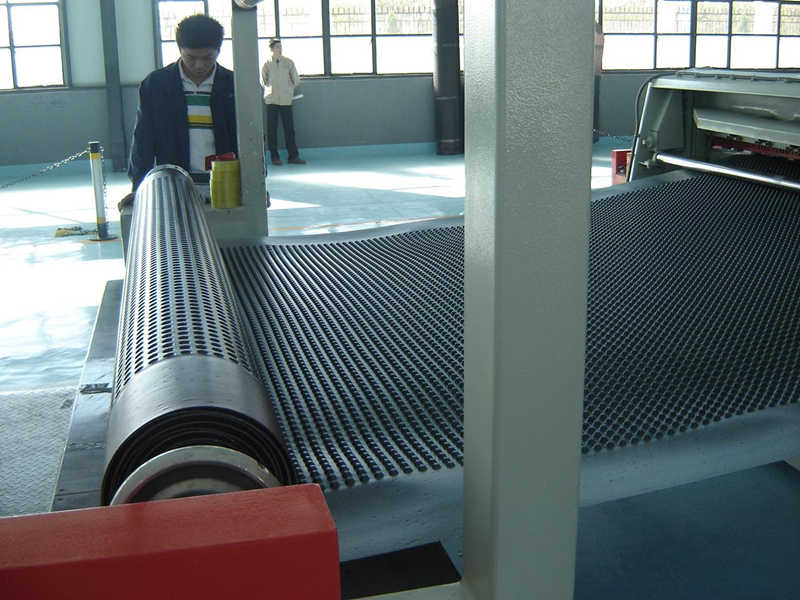

5. Traction cutting，Through the traction device, the drainage board is cut to the set length to obtain the finished product.
Specifications and models of the HDPE Drainage Sheet Machine:
| screw drive motor power(kw) | 30-315 |
| screw diameter(mm) | 45-150 |
| screw L/D ratio(mm) | 33/1-38/1 |
| Screw max. speed(rpm) | 110 |
| Max. production line speed(m/min) | 1-10 |
| products width(mm) | 300-5000 |
| products thickness(mm) | 0.2-20 |
Product Feature of the HDPE Drainage Sheet Machine:
·High-efficiency production: Reasonable design, high degree of automation, convenient operation and high output.
·Diverse products: We can produce drainage boards of various specifications and colors by changing molds.
·Energy conservation and environmental protection: It adopts variable frequency speed regulation, infrared energy-saving heaters, etc., which is highly efficient and low-consumption.
A description of the length and materials of the HDPE Drainage Sheet Machine：
HDPE drainage sheet machine
Width: 1000-3000mm
Thickness: 5-30mm
Certification: CE and ISO9001
Warranty: 1 year
