Sheet Production Line

Sheet Production Line

The sheet production line manufactured by Longchangjie Machinery achieves efficient conversion from PE raw materials to sheets through the collaborative work of all its components. This production line can meet the demands of different fields for sheets.

1.Product Description

Production Workflow Of Sheet Production Line:

1.Pour the plastic raw materials used in this production line into the extruder.

2.After putting the plastic raw materials into the extruder, we need to heat them up to melt them, which can facilitate better extrusion and shaping in the subsequent process.

3. After that, the filtered melt enters the extrusion die head and can be transformed into sheet materials of the desired thickness and width.  This is the forming process.

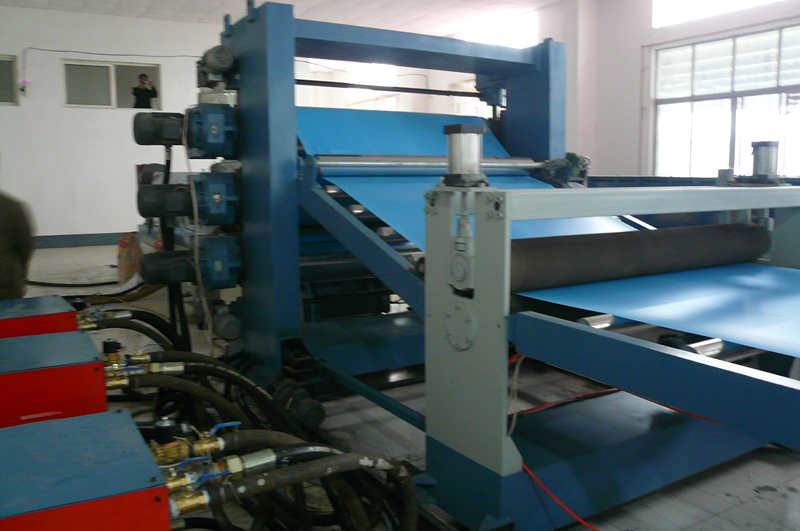

4. The sheet material also needs to go through a three-roll calender, so that its thickness and surface condition can be well controlled, that is, the calendering.

5.The function of the cooling system is to lower the temperature of the sheet material, allowing it to solidify and take shape, thereby achieving the desired effect.

6. Cut the sheet according to the previously determined size, as large as you want. This step is cutting.

7. Finally, stack the sliced materials and pack them up.


2.Product Parameter(Specification)

Specifications and models of the Sheet Production Line:

Screw drive motor power 30-315kw
Screw diameter 45-150mm
Screw L/D ratio 33/1-38/1
Max screw speed 110rpm
Max extruding product capacity 30-600kg/h
Max production line speed 10m/min
Products width 600-2500mm
Products thickness 0.6-20mm


3.Product Feature And Application

Product Application And Feature of the Sheet Production Line:

· This sheet production line can process and produce various materials such as PP, PE, and PET. We can use the sheets it produces in many fields including packaging, construction, and advertising. With the continuous advancement of technology, we can observe that efficient, energy-saving and intelligent production lines are gradually becoming a development trend, which is also to meet the market's demand for high-quality and diverse sheet materials.


4.Production Details

A description of the length and materials of the Sheet Production Line:

Width: 800-2100mm
