PVC Wire Cable Conduit Make Machine

1.Product Description

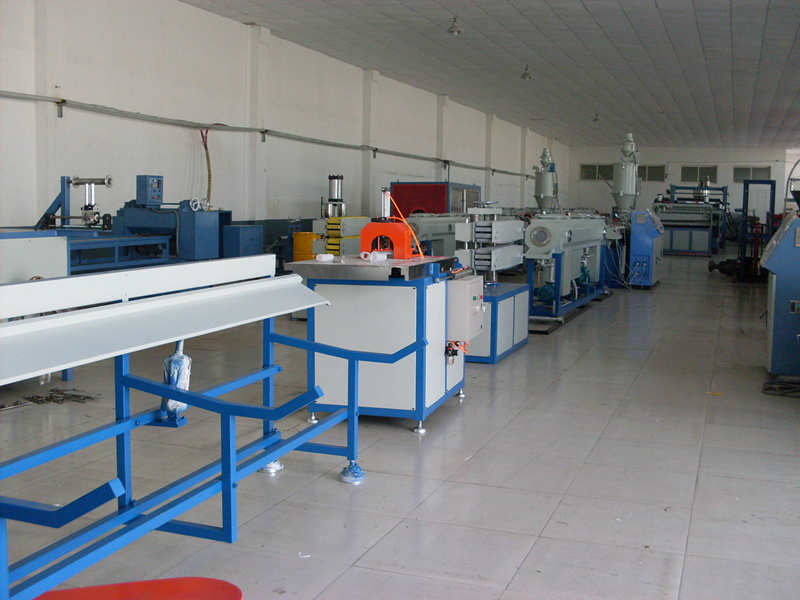

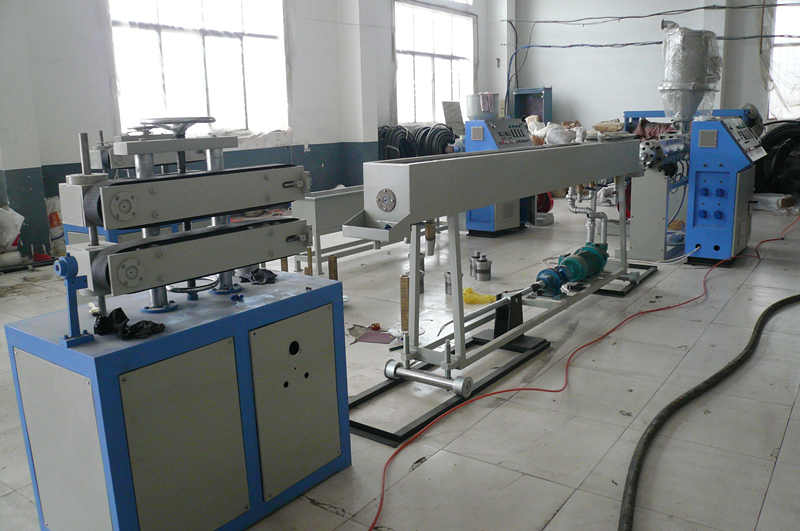

Composition of the production line of PVC Wire Cable Conduit Make Machine:

· Conical twin-screw extruder, Specially designed for PVC resin materials, it features uniform plasticization, stable extrusion, and is equipped with an intelligent temperature controller and frequency converter for control, offering energy-saving effects.

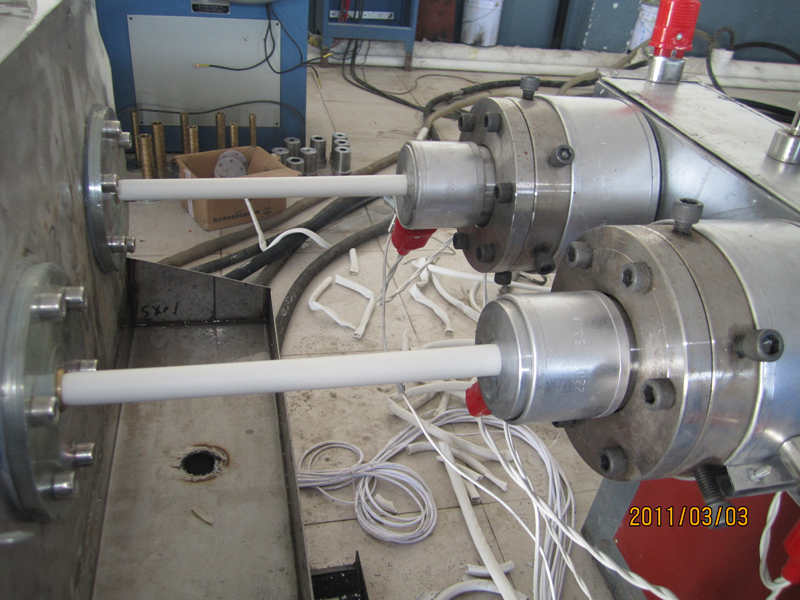

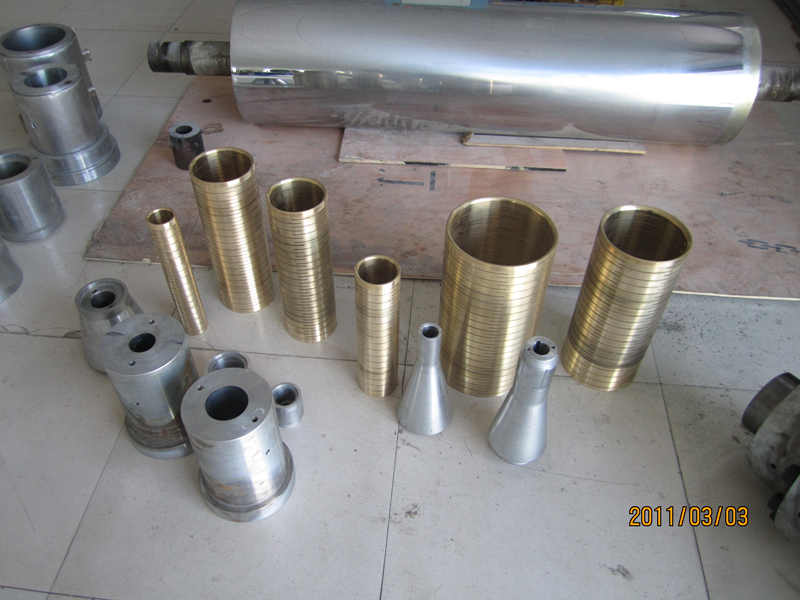

· Extrusion die,Made of high-quality die steel, it is rationally designed to ensure uniform extrusion of materials and form the required pipe shape.

· Vacuum shaping box, Mainly made of stainless steel, it is equipped with a vacuum shaping cooling system and a spray cooling system. The water level is automatically adjusted to ensure the stability and roundness of the pipe size.

· Traction machine, It features independent speed regulation and flexible traction methods, such as two-jaw, three-jaw, four-jaw, six-jaw, eight-jaw, etc., to meet the requirements of different pipe diameters. The transmission system is reliable, ensuring efficient and high-quality extrusion of pipes.

· Cutting machine, It adopts a fully hydraulic design, allowing for flexible adjustment of cutting pressure and depth. It features an automatic chamfering function and is equipped with a powerful chip suction system to achieve chip-free cutting.

· Flipping frame, The automatic flipping after fixed-length cutting is achieved through a cylinder. It is equipped with a delay and limit device to complete the unloading and reset actions.

2.Product Parameter(Specification)

Specifications and models of the PVC Wire Cable Conduit Make Machine:

3.Product Feature And Application

Product Feature of the PVC Wire Cable Conduit Make Machine:

1. High production efficiency: The equipment is rationally designed, with all components operating in coordination to achieve efficient and continuous production.

2. Stable product quality: Precise temperature control and a stable extrusion system ensure the dimensional accuracy and performance consistency of the pipes.

3. Simple and intelligent operation: It adopts a PLC control system and variable frequency speed regulation technology to achieve automated operation and remote monitoring.

4. Energy conservation and environmental protection: The equipment has low energy consumption during operation and no harmful substances are emitted during the production process, meeting environmental protection requirements.

4.Production Details

A description of the length and materials of the PVC Wire Cable Conduit Make Machine:

PVC wire cable/conduit make machine

Pipe diameter:16-63mm

Useful material:PVC

Produce speed:1-12m/min
