PVC Sheet Equipment

1.Product Description

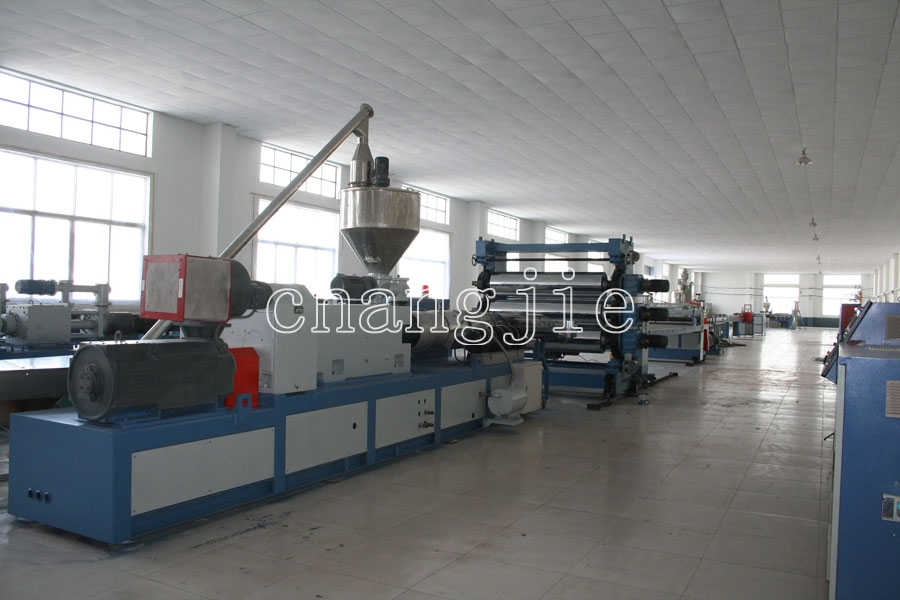

Equipment configuration Of The PVC Sheet Equipment:

Conical twin-screw extruder: Taking the SJSZ60/125 model as an example, the screw diameter is 60/125mm, the main motor power is 30kW, and the output is 200kg/h. It is responsible for the melting and plasticizing of raw materials and their transportation.

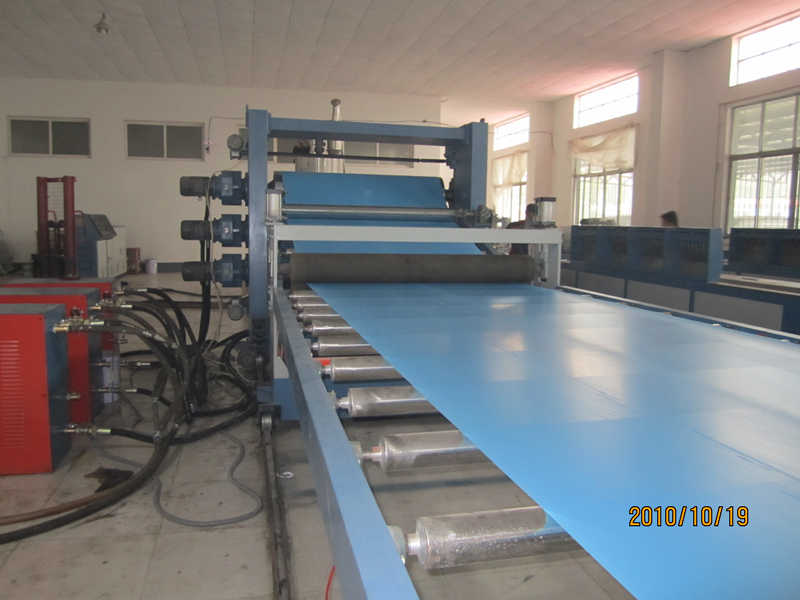

Five-roll calender: L-shaped roller arrangement (5 rollers), roller size 300×860mm (main roller), heated by oil, line speed 2.5m/min, capable of producing sheet materials ranging from 0.12 to 1.5mm in thickness, main motor power 22kW.

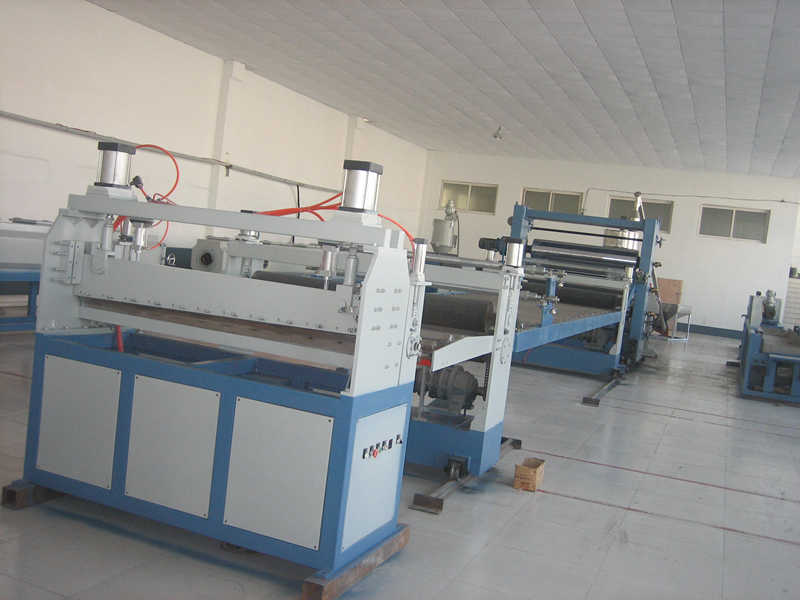

Auxiliary equipment: Includes vacuum shaping table (cools and shapes the sheet materials, improves surface smoothness), double-track traction machine (variable frequency speed regulation to ensure stable traction), automatic stacking machine (saves manpower and enables orderly stacking) and so on.

2.Product Parameter(Specification)

Specifications and models of the PVC Sheet Equipment:

3.Product Feature And Application

Product Feature of the PVC Sheet Equipment:

Automation and Precision Control: An independent roller temperature control system is adopted, and the thickness of the sheet is adjusted in both directions by the screw. Some equipment is equipped with a PLC control system to ensure uniform thickness of the sheet (error ≤ ±0.02mm).

Materials and Durability: The screw is made of nitrided steel (38CrMoALA), which is corrosion-resistant and wear-resistant, thereby extending the service life; the flow surface of the die head is plated with hard chromium to enhance the glossiness of the product surface.

Environmental Design: Some units are equipped with a built-in circulating cooling system, enabling "zero water discharge from the main unit", thereby reducing environmental pollution.

4.Production Details

A description of the length and materials of the PVC Sheet Equipment:

1. High quality& best price

2. Sheet thickness: 0.2mm-20mm

3. Sheet width: 600-1200mm

4. CE approved
