PVC Pipe Make Machine

1.Product Description

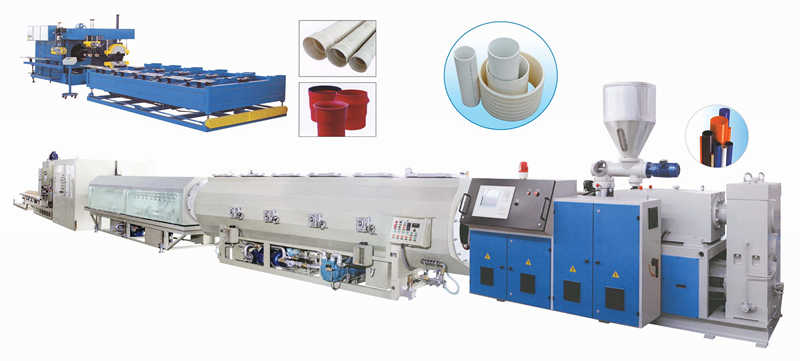

Main equipment composition of PVC Pipe Make Machine:

PVC pipe machinery mainly consists of components such as extruders, mold cooling equipment, and cutting equipment. The following is its specific introduction:

· Extruder  In this equipment, PVC raw materials are heated and melted. Through the rotation and push of the screw, the materials are compacted, melted, mixed and homogenized, and exhaust and dehydration are completed. Finally, the molten materials are pushed to the die head.

· Mold The molten PVC material enters the mold. The shape and size of the flow channels inside the mold determine the shape and size of the pipe.

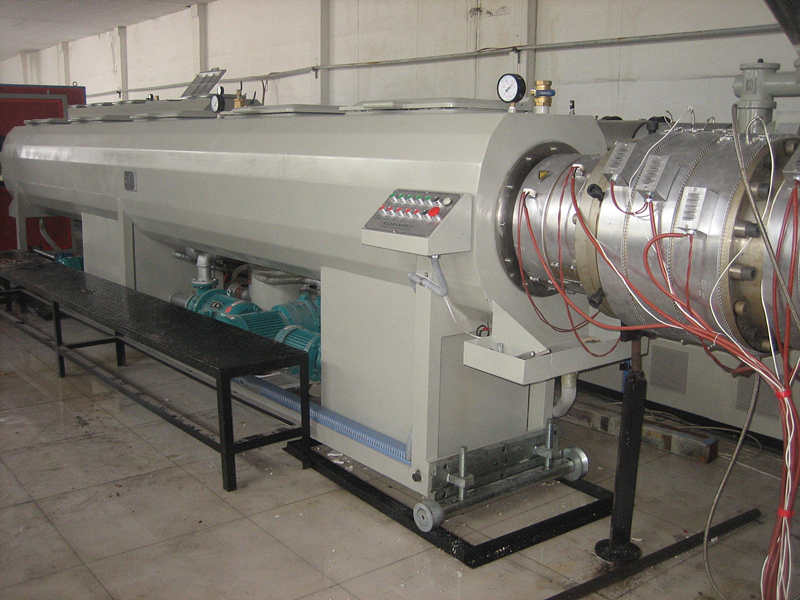

· Cooling equipment  It is usually a vacuum shaping water tank. Through the effect of vacuum adsorption and cooling water, the pipe is rapidly cooled and shaped to ensure dimensional accuracy and physical properties.

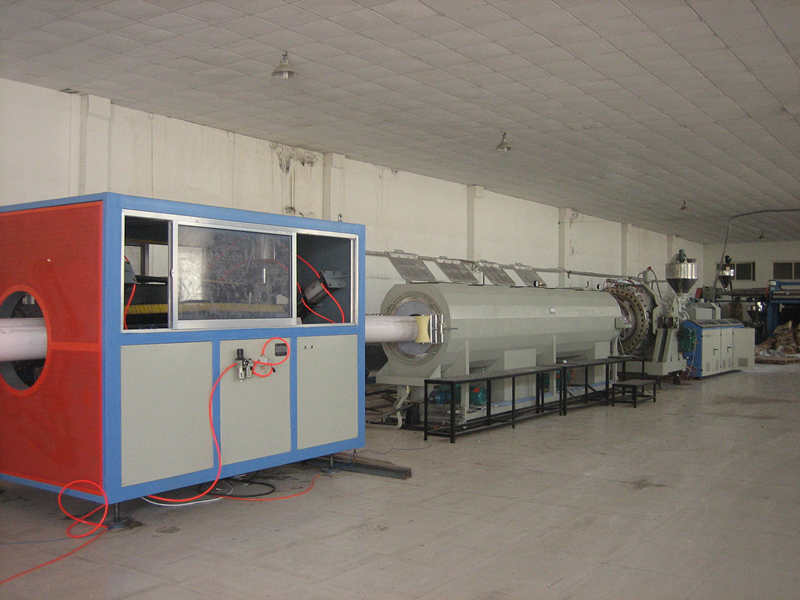

· Traction machine  Continuously and automatically draws the cooled and hardened pipe from the die head to maintain a stable production speed.

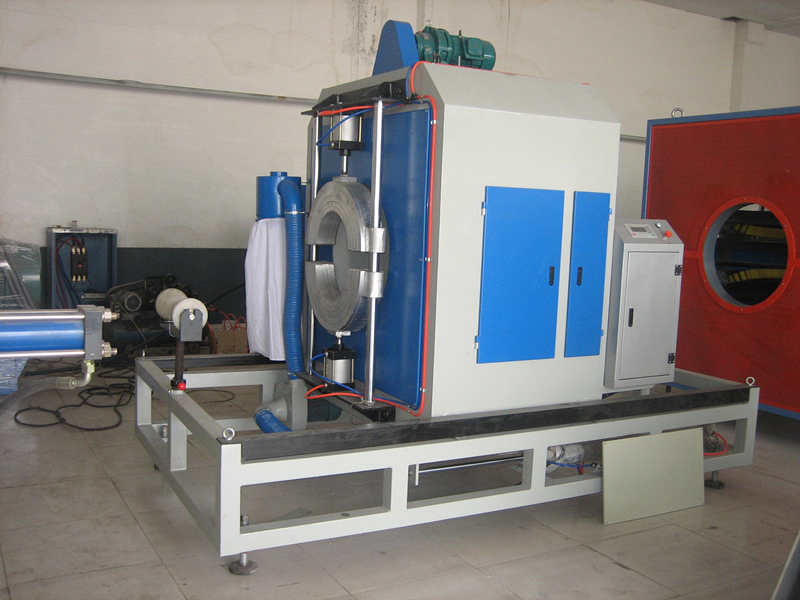

· Cutting equipment  It automatically cuts pipes according to the set length. Common methods include saw blade cutting and planetary cutting, etc.

2.Product Parameter(Specification)

Specifications and models of the PVC Pipe Make Machine:

3.Product Feature And Application

Product Feature of the PVC Pipe Make Machine:

1. High-efficiency production: Advanced production lines and automated control systems are adopted to enhance production efficiency and product quality.

2. Versatility: It can produce PVC pipes of different specifications and uses to meet diverse demands.

3. Energy conservation and environmental protection: The equipment design focuses on energy conservation and environmental protection, reducing production costs and meeting environmental protection requirements.

4.Production Details

A description of the length and materials of the PVC Pipe Make Machine:

Pipe diameter:16-630mm

Useful material:PVC

Produce speed:1-10m/min
