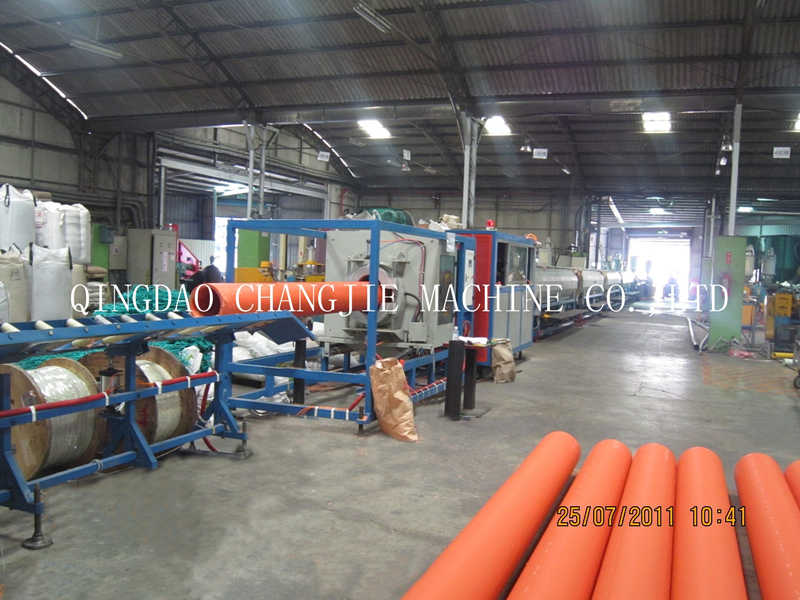

MPP cable protection sleeve production line mainly includes the following mechanical equipment:
1. Extruder
Single screw extruder: Equipped with high-speed MPP special power tube screw, plasticization stability, using Siemens motor and Japan RKC temperature control meter, to ensure the stability and accuracy of the production process.
· Twin screw extruder: conical twin screw design, suitable for MPP material mixing and plasticizing, improve production efficiency and product quality.
2. Mold
· Customized according to user needs, professional CNC machining, can be more. Change the mold of different pipe diameters to adapt to the production of various specifications.
3. Cool the device
· Vacuum shaped cooling box: made of stainless steel plate, equipped with famous brand water pump and vacuum pump, cooling pipe through spray head to ensure product size stability.
Cooling water tank: used to further cool the shaped pipe to ensure that the product reaches the required hardness and shape.
4. Tractor
· Rubber block traction and three-claw track design are adopted to prevent slippage, frequency conversion speed regulation, and ensure stable traction of the pipe in the production process.
5. Cutting machine
· Using ring cutting technology, no dust, precise cutting without burr, to ensure the cutting quality of the pipe.
6. Other auxiliary equipment
· Feeding system: multi-group weighing feeding system to ensure accurate ratio of raw materials and continuous supply.
· Winding machine: automatic winding machine, used for winding and packaging of finished pipes, improve production efficiency.
· Stacking rack: used for temporary stacking of finished pipes to facilitate subsequent inspection and packaging.
| No. | Item | Index |
| 1 | tensile strength Mpa | ≥24 |
| 2 | bending strength Mpa | ≥27 |
| 3 | bending elastic modulus Mpa | ≥930 |
| 4 | Vicar heat resistance (1Kg, 500C/h) 0C | ≥126 |
| 5 | friction coefficient | 0.35 |
| 6 | vertical coefficient of shrinkage % | ≤1 |
| 7 | deviation in roundness % | 3.5 |
| 8 | flattening test(flattened to 1/2) | not crack |
| 9 | ring thermocompression(700C/2h)KN | 1.96 |

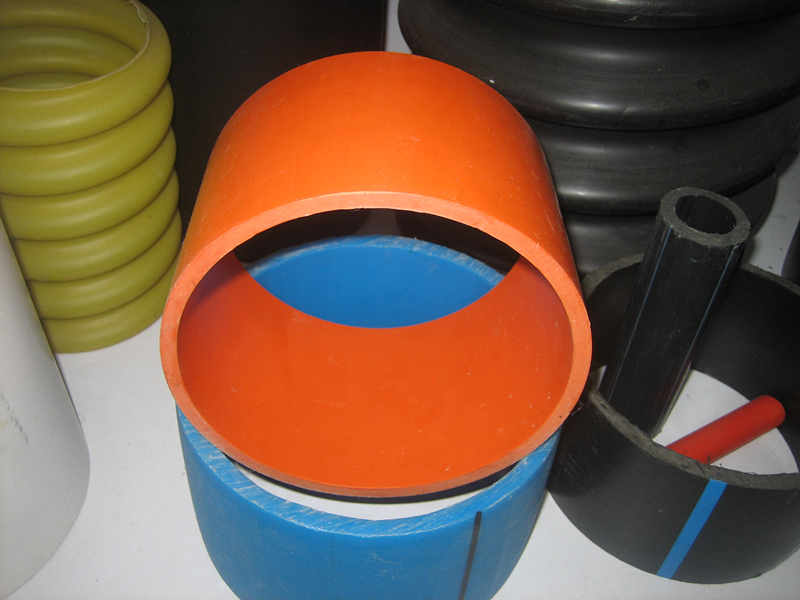

Application
·Power engineering: urban power grid transformation, industrial park power line laying, etc.
·Communication engineering: Protect the communication cable to ensure the stability of signal transmission.
·Traffic engineering: road, railway, bridge and other cable protection.
·Construction: Protection of cable wiring inside buildings.
1. Diameter range: 16-250mm
2. Material: PP PE MPP etc
