PVC Wire Cable Conduit Pipe Equipment

1.Product Description

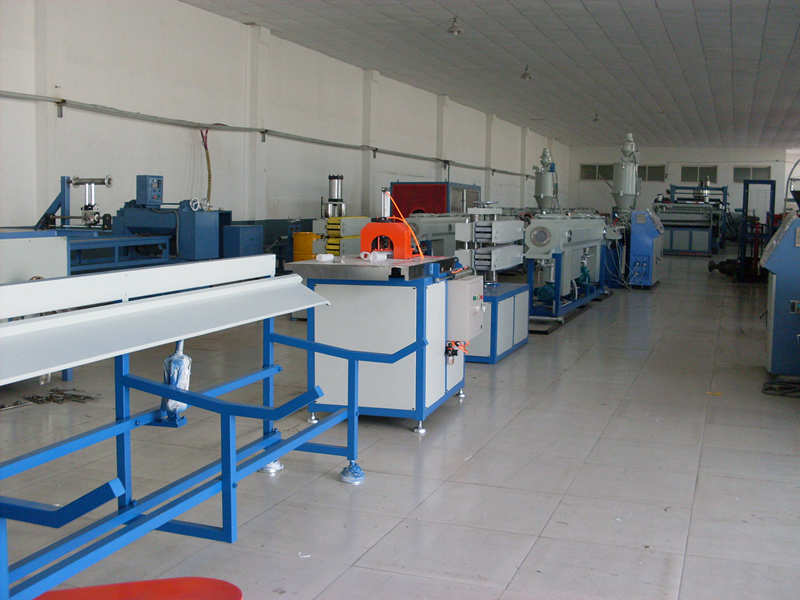

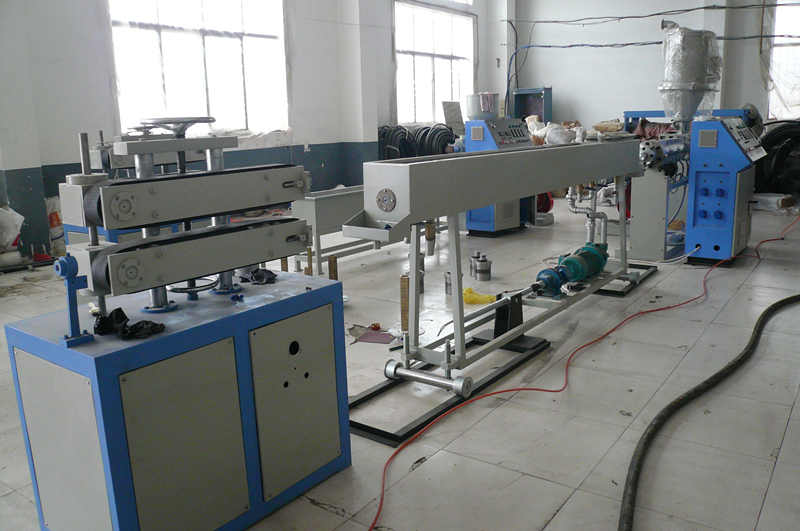

Technological process of PVC Wire Cable Conduit Pipe Equipment:

1. Raw material preparation and mixing， Add PVC resin, stabilizer, lubricant, etc. in the prescribed proportion to the high-speed mixer, mix evenly, and then cool to an appropriate temperature.

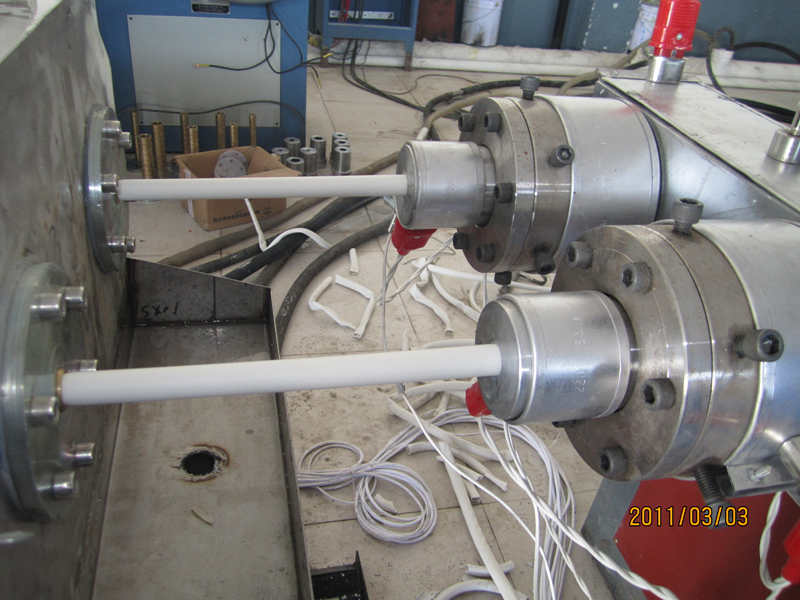

2. Extrusion molding，The mixture enters a conical twin-screw extruder, where it is plasticized and melted under the push and heating of the screws, and then formed into a tubular shape through a mold.

3. Vacuum sizing and cooling， After forming, the pipe enters the vacuum sizing box, where it is shaped under the action of vacuum adsorption and cooling water and then cooled to room temperature.

4. Traction and Cutting， The cooled pipes are continuously and stably drawn out by the traction machine and automatically cut to the set length by the cutting machine.

5. Finished product stacking and inspection， The cut pipes are automatically unloaded and stacked by the material turnover rack. After passing the quality inspection, they are packaged and stored in the warehouse.

2.Product Parameter(Specification)

Specifications and models of the PVC Wire Cable Conduit Pipe Equipment:

3.Product Feature And Application

Product application of the PVC Wire Cable Conduit Make Machine:

1. Power cable protection: Used for crude oil gathering and transportation in oil fields and chemical industry. High-temperature and corrosion-resistant pipes, hot and warm water supply and drainage, and protection of directly buried high-voltage power cables and other fields.

2. Building water supply and drainage: As a building drainage pipe, it is used for drainage and sewage discharge, etc.

3. Communication cable laying: It is used for the laying and protection of communication cables.

4.Production Details

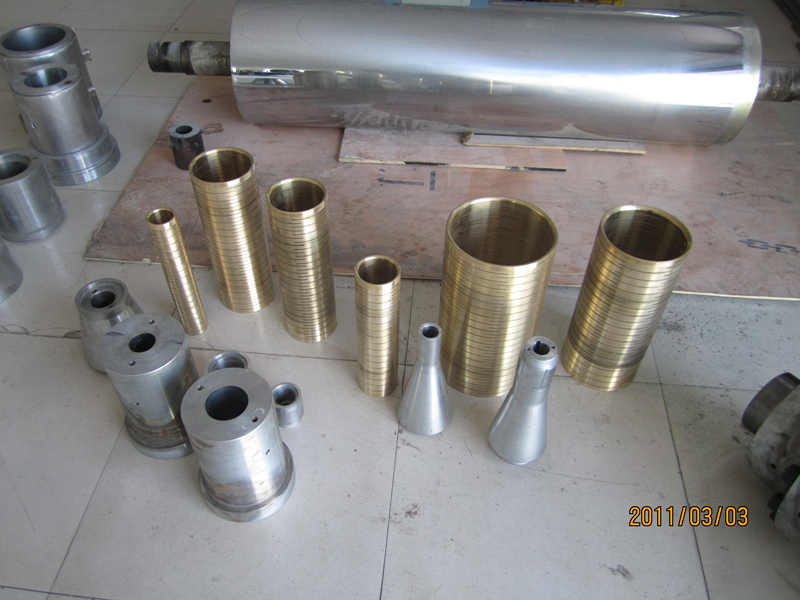

A description of the length and materials of the PVC Wire Cable Conduit Make Machine:

PVC wire cable/conduit make machine

Pipe diameter:16-63mm

Useful material:PVC

Produce speed:1-12m/min
