The PVC steel wire reinforced soft pipe production line is a device used for manufacturing PVC steel wire reinforced hoses. It mainly consists of an extruder, a steel wire forming machine, a composite mold, a cooling water tank, a traction machine, etc.
The following is its specific introduction:
·Equipment composition

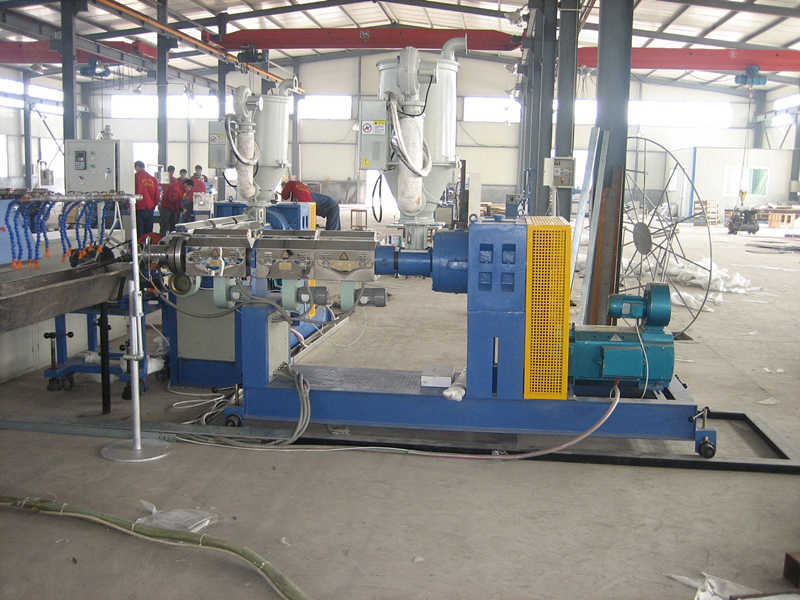

Extruder: Single-screw extruders, such as the SJ65/28 model, are usually adopted to ensure the plasticization quality and output of the material.

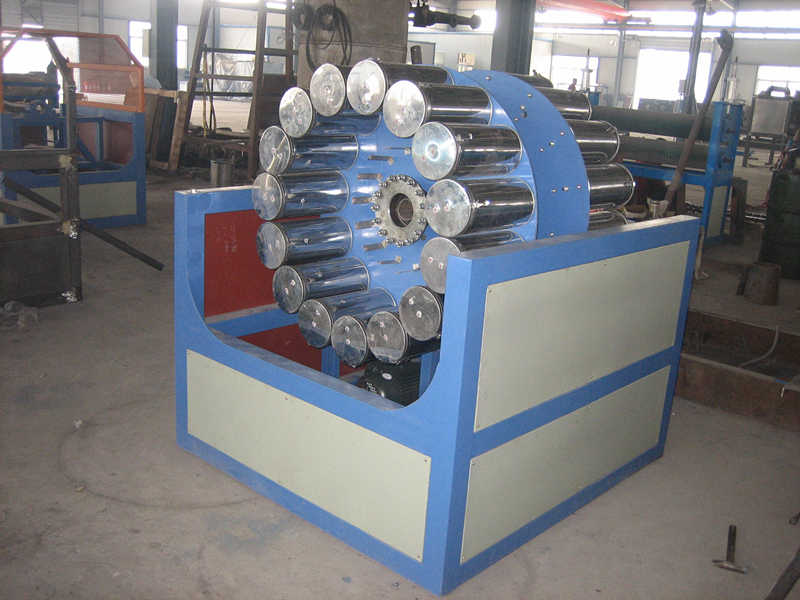

Steel wire forming machine: Specially designed to evenly embed spiral steel wire, ensuring the structural strength of the hose.

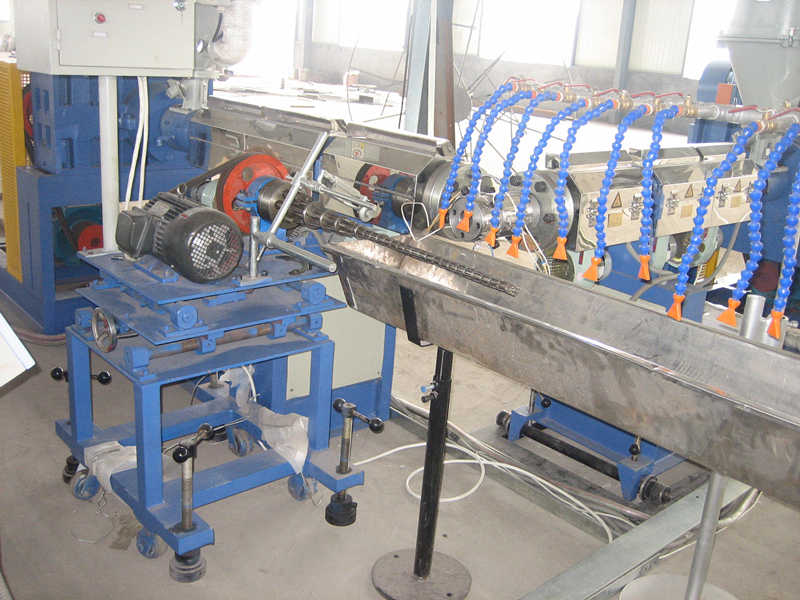

Compound mold: Used for forming the composite structure of the outer layer of the hose and the steel wire.
Cooling water tank: It is used for cooling and shaping to ensure the stability of the hose size.
Traction machine: It adopts double-track traction to ensure stable traction of the hose during the production process.
Specifications and models of the PVC steel wire reinforced soft pipe production line
| Model | Screw diameter | Main power | Haul power | Power of coil winding machine | Die head of coil winding machine | Output | Max outer diameter |
| SJ-45 | 45 mm | 7.5kw x 2 | 1.5kw | 1.5kw | 10 | 45-50kg/h | Φ8-25mm |
| SJ-65 | 65 mm | 15kw x 2 | 2.2kw | 2.2kw | 20 | 80-100kg/h | Φ32-63mm |
Application scope of PVC steel wire reinforced soft pipe production line:
· Machinery industry: It is used for conveying high-pressure and flammable gases and liquids.
· Chemical industry: Its corrosion resistance makes it widely used in the chemical field.
· Construction industry: Used in building drainage and ventilation systems.
· Agricultural irrigation: Resistant to compression and corrosion, suitable for agricultural irrigation systems.
A description of the length and materials of the PVC steel wire reinforced soft pipe production line
Pipe diameter:8-63mm
Useful material:PVC
