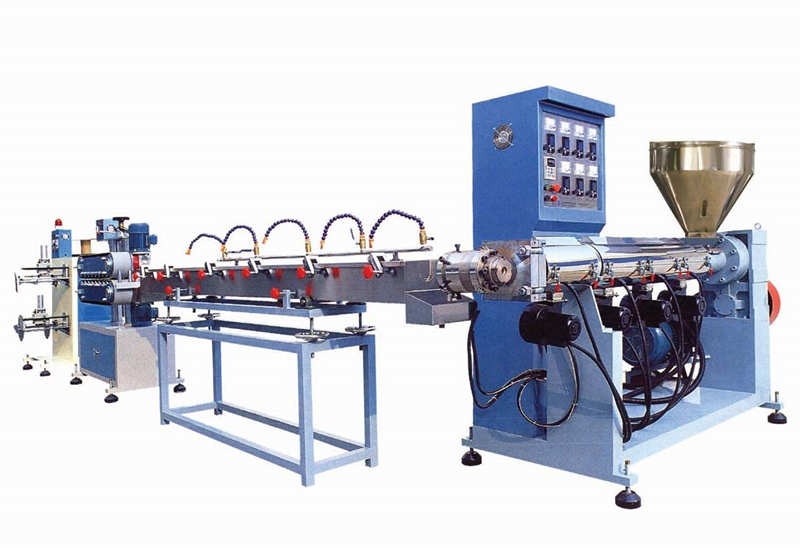

Production process flow of PVC steel wire reinforced soft pipe extruding machine:
1.The ingredients are mixed and granulated. PVC resin, plasticizer, stabilizer and other raw materials are mixed in a certain proportion and then granulated through a granulator.

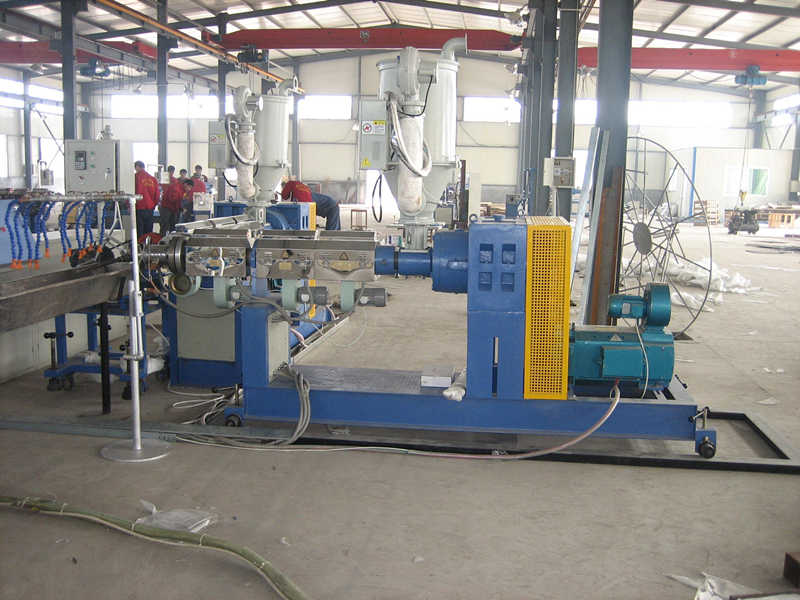

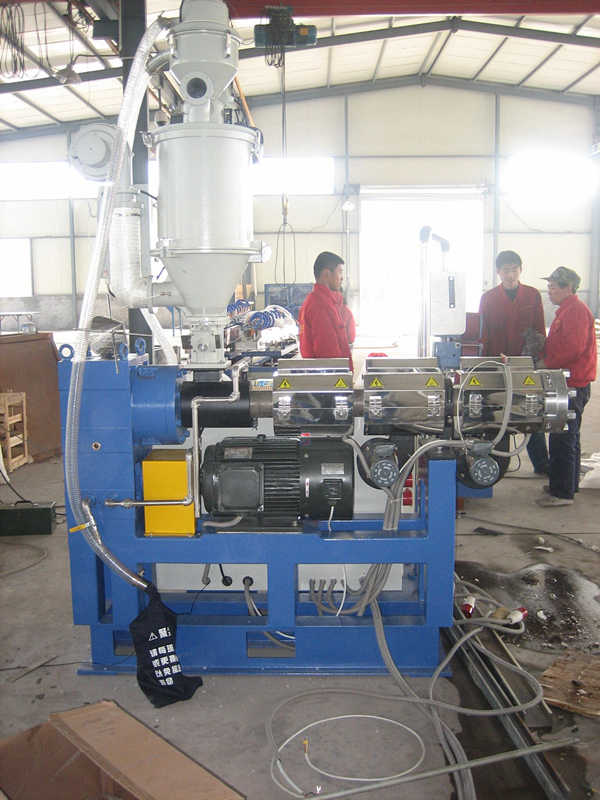

2. Extrusion molding.The granular material enters the extruder, is heated and plasticized under the action of the screw, and is extruded into a tube blank through the die head.

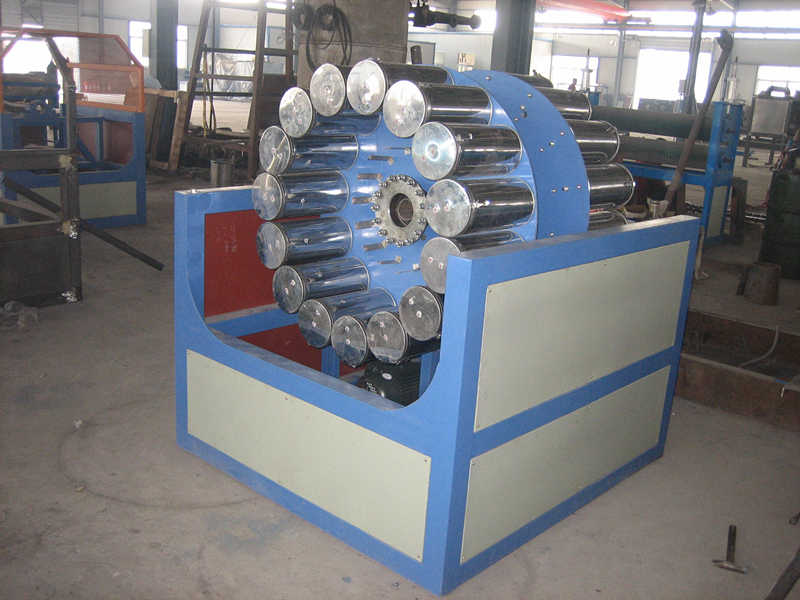

3. Steel wire winding.The spiral steel wire produced by the steel wire forming machine is evenly wound around the extruded tube blank.
4. Cooling and shaping. The hose wound with steel wire enters the cooling water tank for cooling and shaping to stabilize its dimensions.
5. Traction and winding. The cooled hose is pulled by the traction machine and then wound into a roll through the winding machine.
Specifications and models of the PVC steel wire reinforced soft pipe extruding machine:
| Model | Screw diameter | Main power | Haul power | Power of coil winding machine | Die head of coil winding machine | Output | Max outer diameter |
| SJ-45 | 45 mm | 7.5kw x 2 | 1.5kw | 1.5kw | 10 | 45-50kg/h | Φ8-25mm |
| SJ-65 | 65 mm | 15kw x 2 | 2.2kw | 2.2kw | 20 | 80-100kg/h | Φ32-63mm |
Application of the PVC steel wire reinforced soft pipe extruding machine:
PVC steel wire reinforced soft pipe extruding machine are widely used in industries, agriculture, construction, medical care and other fields, for transporting liquids, gases, solid particles and other media, such as chemical liquid transportation, agricultural irrigation, vacuum cleaning, food and beverage transportation, etc.
A description of the length and materials of the PVC steel wire reinforced soft pipe extruding machine:
Pipe diameter:8-63mm
Useful material:PVC
