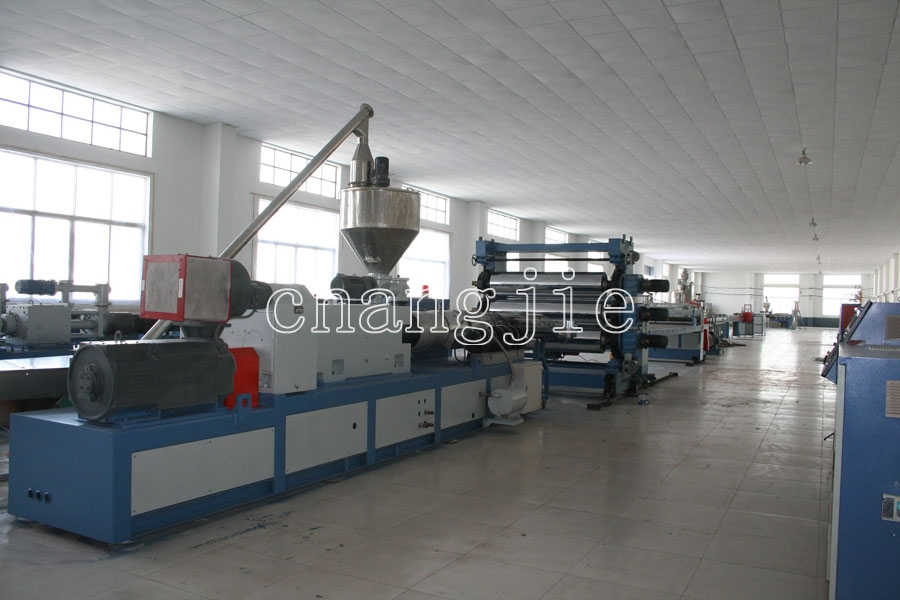

Main Components Of The Equipment Of The PVC Sheet Production Line:
·Our extrusion system of this equipment has a specially designed screw. It not only has excellent mixing effect but also has strong plasticizing capacity, which can make the raw materials melt very evenly and maintain consistent color. As a result, the extrusion volume and production efficiency naturally increase.
·For the mold system, we use a hanger-type die head and are equipped with a dual throttle design. You can precisely adjust the thickness of the sheet material, and the size accuracy of the product can be fully guaranteed.

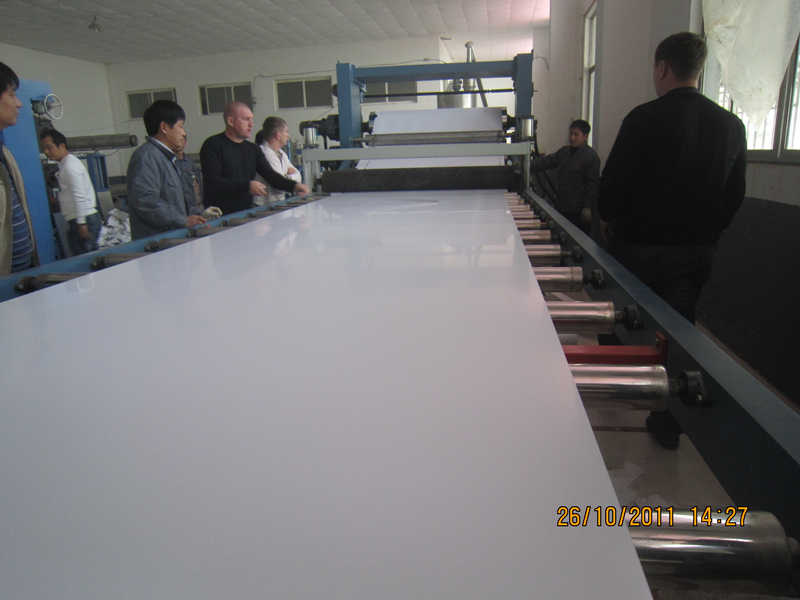

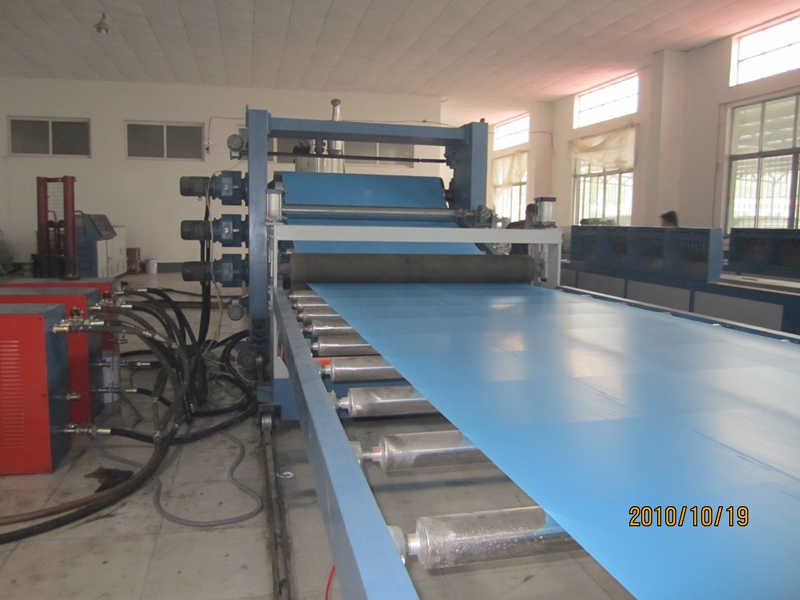

·Looking at the calendering and cooling system, the three-roll calender supports horizontal, vertical or 45° inclined operation. We have also paired it with an independent temperature control system (the temperature control can reach ±1℃), which can ensure the surface of the sheet material is flat and the thickness is uniform; the cooling conveyor frame, we have optimized the pipeline design, which can make the sheet material quickly take shape.

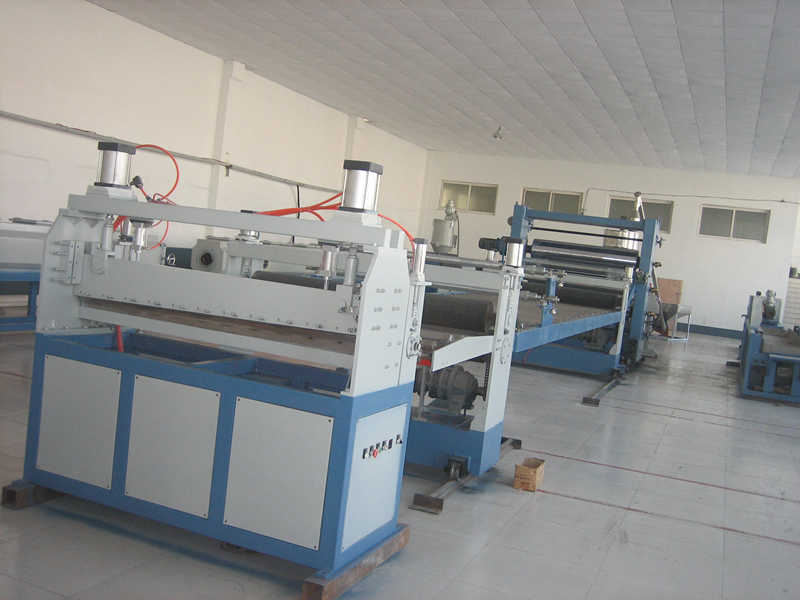

·The tensioning and cutting system is also not lacking. The roller-type tensioning machine and the wide-width cutting machine adopt electrical synchronous control. You can operate it to ensure the cutting edge is straight; the slicing machine can precisely set the length and quantity, and the take-up table uses a torque motor to adjust the tension, so we can roll up the thin plate smoothly.
Specifications and models of the PVC Sheet Production Line:
| Extruder | SJ-150X35 Single screw extruder |
| valid screw length(L/D) | 35:1 |
| screw rotating speed(r/min) | 60-90(r/min) |
| main motor power | 132kw |
| capacity | 300kg/h |
| width of Calendar roller x diameter | 1800 * 490mm |
| Calendar roller turning speed | 0.15-3r/min |
| drawing speed | 0.15-3r/min |
| drawing power | 4kw |
| cutting power | 4kw |
| overall dimension of the line | 45mX3.5mX4.25m |
Product Feature of the PVC Sheet Production Line:
1. In terms of automation and stability, our equipment can be equipped with optional devices such as hydraulic metering pumps and laminating machines. The degree of automation is indeed high, and it operates stably. It is perfectly suitable for large-scale continuous production.
2. In terms of efficiency and flexibility, we have designed the ratio of the length to diameter of the screw (L/D) more reasonably, and the extrusion efficiency naturally increases. Moreover, it can produce various sheet materials with thickness ranging from 0.2 to 30mm and width ranging from 700 to 2100mm. Look, this way it can meet the needs of different industries.
A description of the length and materials of the PVC Sheet Production Line:
1. High quality& best price
2. Sheet thickness: 0.2mm-20mm
3. Sheet width: 600-1200mm
4. CE approved
