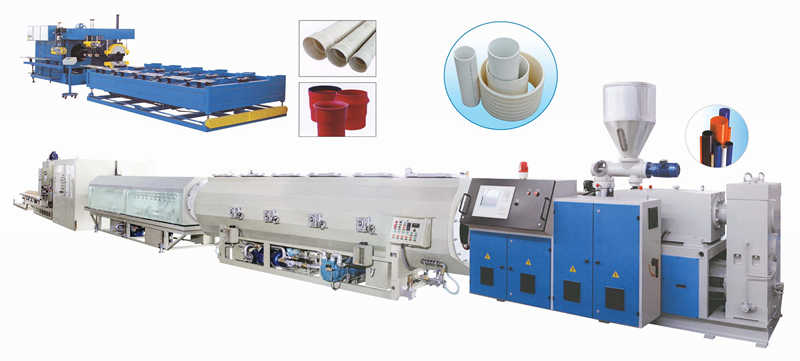

Composition of the production line of PVC Large Diameter Air Supply Pipe Production Line:

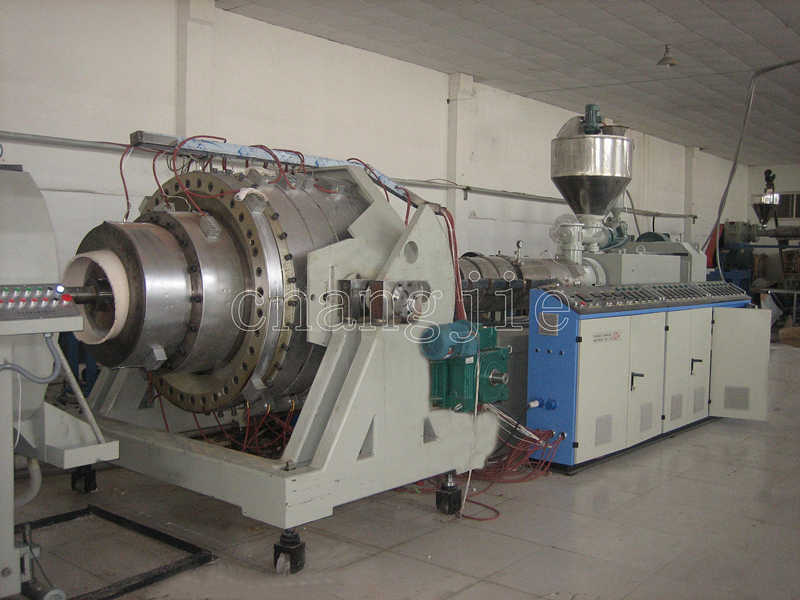

1. Extruders,The main unit usually adopts a conical twin-screw extruder, featuring a unique screw design. The material stays in the barrel for a short time, ensuring uniform mixing and excellent plasticizing effect.

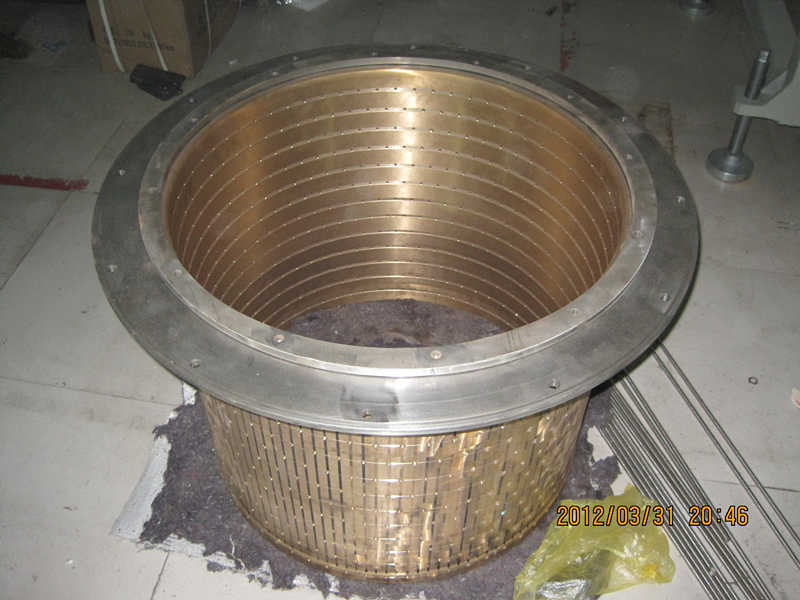

2. The vacuum shaping device, including a vacuum spray box and a spray cooling box, is used for shaping and cooling pipes. The components in contact with water are made of stainless steel.
3. The traction machine ,provides stable traction force to ensure that the pipe is evenly drawn out of the extruder. It has a variety of claw numbers to choose from to meet the production requirements of different pipe diameters.

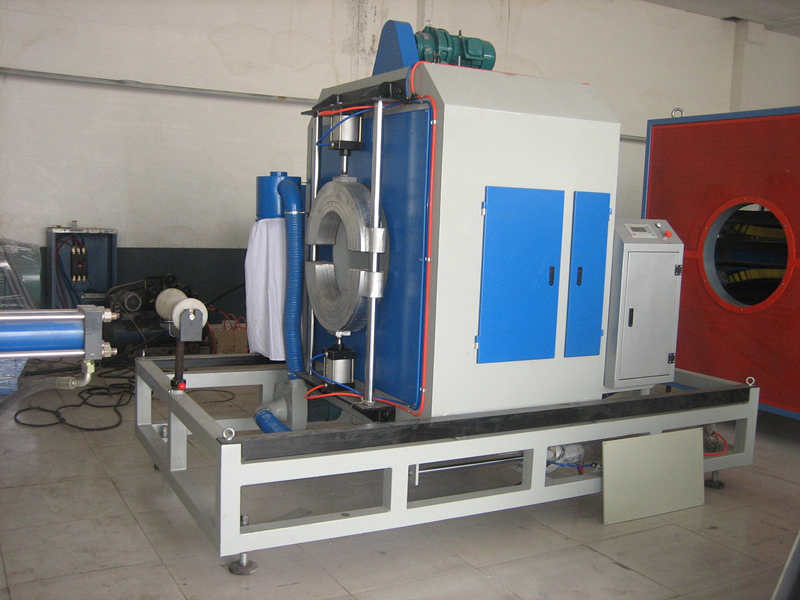

4. Cutting machines are used to achieve fixed-length cutting of pipes. The cutting methods include blade chipless cutting, sawing and planetary sawing (with chamfering).
5. Stacking device, automatic flip plate type or roller type stacking device, used for stacking pipes after cutting.
6. Control system,It offers multiple options such as PLC automatic control system to ensure the stability of the production process and the simplicity of operation.
Specifications and models of the PVC Large Diameter Air Supply Pipe Production Line:
| Model | UPVC63 | UPVC160 | UPVC250 | UPVC450 | SGF630 |
| Pipe range(mm) | 16-63 | 63-160 | 75-250 | 275-450 | 315-630 |
| Vacuum forming length(mm) | 6000 | 6000 | 6000 | 6000 | 6000 |
| Degree of vacuum(Mpa) | -0.03~0.08 | -0.03~0.08 | -0.03~0.08 | -0.03~0.08 | -0.03~0.08 |
| Max. hauling force(N) | 10000 | 15000 | 20000 | 30000 | 40000 |
| Hauling speed(m/min, max.) | 10 | 6 | 4 | 2 | 1 |
| Effective hauling length(mm) | 1000 | 1500 | 1500 | 1600 | 1800 |
| Cutter mode | Dust free cutter | Dust free cutter | Planetary cutter | Planetary cutter | Planetary cutter |
| Length of stock | 6000 | 6000 | 6000 | 6000 | 6000 |
| Compressed air consumption(m³/h) | 0.4 | 0.6 | 1.0 | 1.5 | 1.8 |
| Refilled water volume(m³/h) | 5 | 6 | 7 | 9 | 11 |
Product Features of the PVC Large Diameter Air Supply Pipe Production Line:
1. Lightweight: Convenient for handling and loading/unloading, reducing transportation and installation costs.
2. Low fluid resistance: The inner wall is smooth, reducing water flow resistance.
Improve the hydraulic conditions of the pipe network.
3. Excellent corrosion resistance: Resistant to corrosion by chemical media such as acids and alkalis, suitable for various environments.
4. High mechanical strength: It has excellent pressure resistance, impact resistance and tensile strength.
5. Easy construction: Diverse connection methods, quick installation, and reduced construction costs.
6. Long service life: Under rated usage conditions, the service life can reach over 50 years.
A description of the length and materials of the PVC Large Diameter Air Supply Pipe Production Line:
Pipe diameter:16-630mm
Useful material:PVC
Produce speed:1-10m/min
