Plastic Geocell Production Line

1.Product Description

Core Components Of The Plastic Geocell Production Line:

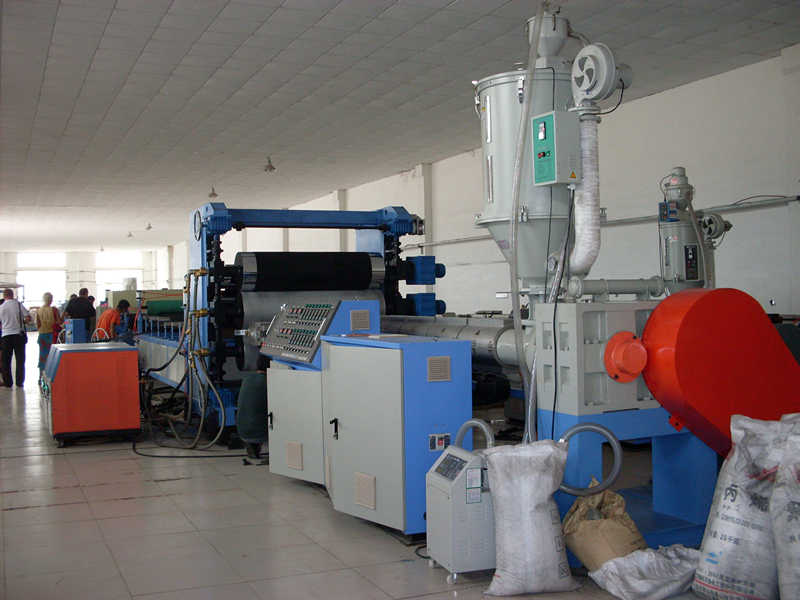

1. Raw material processing and extrusion system

· Utilizing HDPE/PP polymer materials, it achieves uniform proportion through a high-speed mixing machine.

· The twin-screw extruder has precise temperature control function (180-250℃), ensuring the effect of melting and plasticization.

2. Forming and welding system

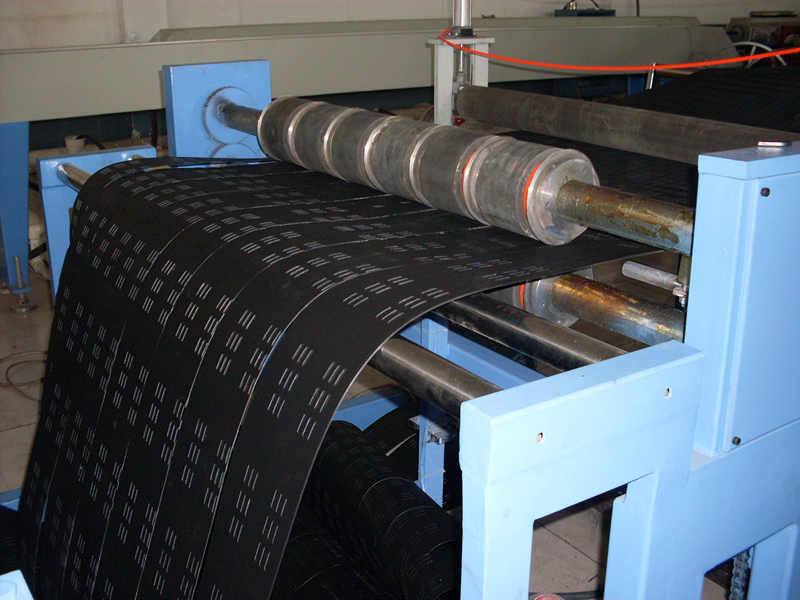

·The ultrasonic welding unit uses 20kHz high-frequency vibration to achieve instantaneous welding, with the weld strength not lower than 80N; the cutting unit driven by a servo motor controls the error within ±0.5mm; the three-dimensional forming mold can support rapid switching of different specifications ranging from 10 to 50cm.

3. Quality Inspection and Packaging System

·The online tensile tester can continuously check the firmness of the welding. Once any non-compliant products are detected, they will be automatically removed. The visual inspection system can identify defects on the product surface with an accuracy rate of up to 99.5%. The automatic winding packaging machine can use PE wrapping film or woven bags for packaging, and both methods are compatible.

2.Product Parameter(Specification)

Specifications and models of the Plastic Geocell Production Line:

3.Product Feature And Application

Product Application And Feature of the Plastic Geocell Production Line:

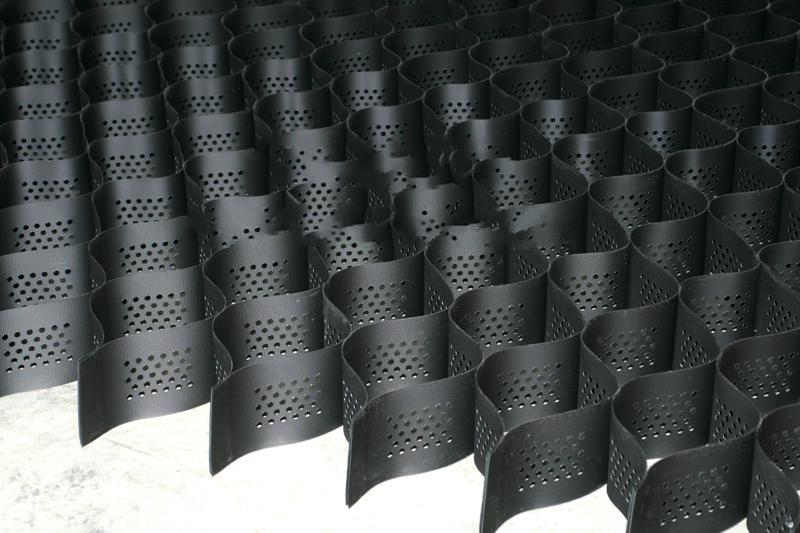

·Now, let's talk about this plastic geogrid. It is designed to be foldable. As a new type of geotechnical synthetic material, the plastic geogrid is widely used in engineering fields such as highways, railways, and water conservancy. The efficiency and automation level of the production line directly affect the quality and production efficiency.

4.Production Details

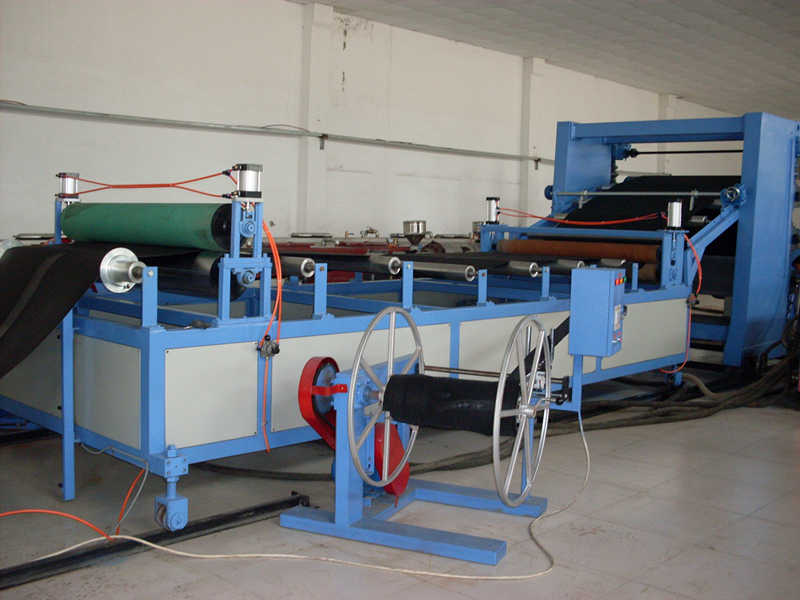

A description of the length and materials of the Plastic Geocell Production Line:

1.5mm max thickness of geocell

1.6m max net width of geocell

250kg/h max output
