The plastic building formwork production line is composed of multiple key equipment, each part working in coordination to ensure the production of high-quality plastic building formwork.

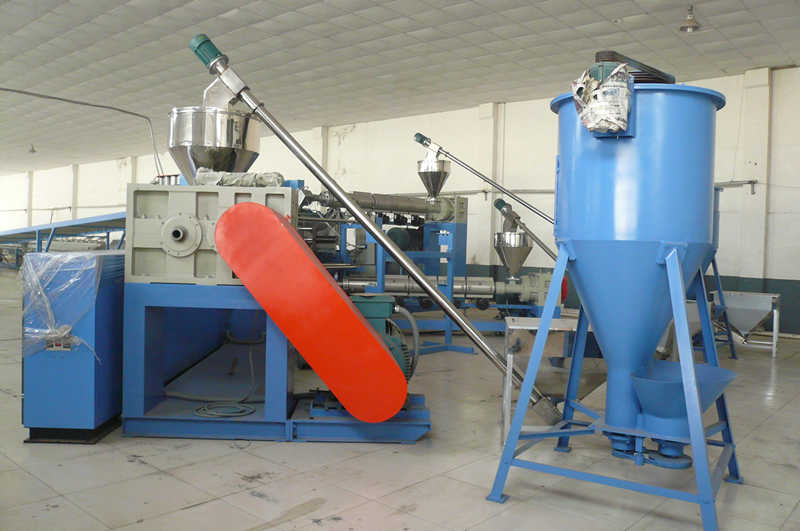

1.Plastic pellet molding machine
·The plastic pellet molding machine is the starting part of the production line. It usually adopts extrusion molding technology, which deforms and shapes plastic pellets through heating and pressure, ensuring the efficient utilization of raw materials and the uniformity of the finished product.
2. Mold
·The mold is the core component in the production line, determining the shape and size of the plastic sheet.
3. Cutting machine
·The cutting machine is used to cut the formed plastic sheet according to the predetermined size.
4. Mold closing machine
·The mold closing machine is responsible for assembling the cut plastic sheets to form an integral building formwork.
5.Post-treatment equipment
·Post-treatment equipment includes processes such as cleaning, drying, and edge trimming to further enhance the smoothness and service life of the finished product.
Specifications and models of the Plastic Construction Board Production Line:
Technical specifications(PVC Building Template Board)
| Model of Main Machine | SJSZ-80/156 Twin Screw Extruder | SJSZ-92/188 Twin Screw Extruder |
| Screw Diameter(mm) | 80 | 92 |
| Screw Number(pcs) | 2 | 2 |
| Rotation Speed of Screw(rpm) | 1-38 | 1-33 |
| Power of Main Machine(kw) | 55 | 110 |
| Heating Power(kw) | 36 | 45 |
| Extrusion Capacity | 100-400 | 400-800 |
Technical Specifications(PP/PE Five Co-Extrusion Building Template Board)
| Model of Main Machine | SJ-120/33 Single Screw Extruder | SJ-90/33 Single Screw Extruder |
| Screw Diameter(mm) | 120 | 90 |
| Screw Number(pcs) | 1 | 1 |
| L/D Ratio | 33:1 | 33:1 |
| Power of Main Machine(kw) | 132 | 55 |
| Breadth(mm) | 900-1220 | |
| Thickness(mm) | Middle Mould:8-14mm, Upper Mould:1-5mm, Lower Mould:3-8mm | |
| Installed Power(kw) | 430 | |
| Extrusion Capacity | 500 | |
| Diemension of Machine(mm) | 33000*10000*5000 | |
Product Application of the Plastic Construction Board Production Line:
Transportation: ships, aircraft, buses, train cars, roof, core layer, interior panels.
Construction, decoration industry: building wall panels, internal decorative panels, residential, office, public places, building interval, commercial decorative frame, clean room panels, ceiling panels, kitchenware, sanitary ware.
The advertising industry: screen printing, computer lettering, advertising signs, display panels, signs with the board.
Industrial applications: chemical corrosion engineering, thermoforming parts, cold storage panels, special cold project, environmental protection board.
Other purposes: template, sports equipment, breeding equipment, waterfront facilities, moisture, water timber, art materials various portable partitions.

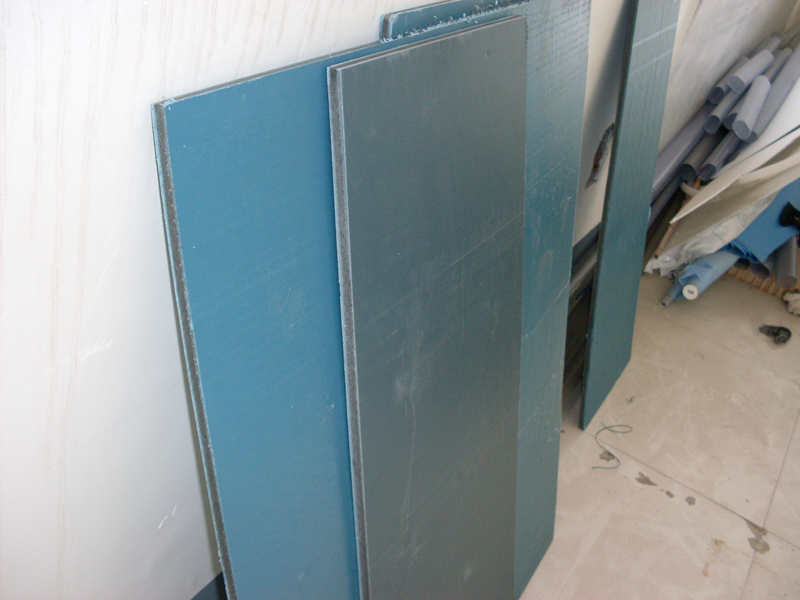

A description of the length and materials of the Plastic Construction Board Production Line：
Template thickness:8-18mm
Template width:915-1220mm
Useful material:PE/PP
