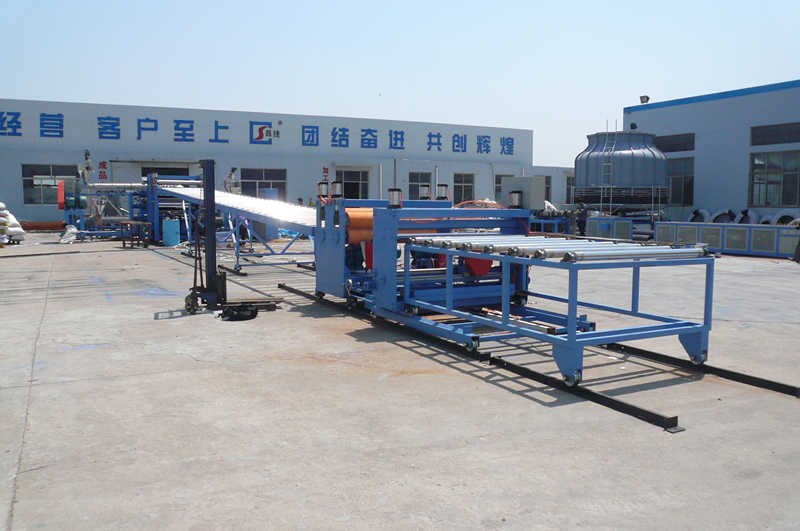

Working principle of Plastic Building Plate Extrusion Line:
The working process of the plastic building formwork production line is efficient and orderly. Firstly, the raw material plastic particles are guided into the plastic extruder through the material frame, where they are melted and extruded into shape under high temperature and high pressure. Then, the molten plastic is precisely formed through the mold to form the initial sheet. Subsequently, the sheet undergoes heat treatment with a heater and cooling treatment with a cooler to ensure its structural stability and dimensional accuracy. Finally, through precise cutting by a cutting machine, plastic building formwork products that meet the requirements are obtained. The entire process is highly automated to ensure production efficiency and product quality.
Specifications and models of the Plastic Building Plate Extrusion Line:
Technical specifications(PVC Building Template Board)
| Model of Main Machine | SJSZ-80/156 Twin Screw Extruder | SJSZ-92/188 Twin Screw Extruder |
| Screw Diameter(mm) | 80 | 92 |
| Screw Number(pcs) | 2 | 2 |
| Rotation Speed of Screw(rpm) | 1-38 | 1-33 |
| Power of Main Machine(kw) | 55 | 110 |
| Heating Power(kw) | 36 | 45 |
| Extrusion Capacity | 100-400 | 400-800 |
Technical Specifications(PP/PE Five Co-Extrusion Building Template Board)
| Model of Main Machine | SJ-120/33 Single Screw Extruder | SJ-90/33 Single Screw Extruder |
| Screw Diameter(mm) | 120 | 90 |
| Screw Number(pcs) | 1 | 1 |
| L/D Ratio | 33:1 | 33:1 |
| Power of Main Machine(kw) | 132 | 55 |
| Breadth(mm) | 900-1220 | |
| Thickness(mm) | Middle Mould:8-14mm, Upper Mould:1-5mm, Lower Mould:3-8mm | |
| Installed Power(kw) | 430 | |
| Extrusion Capacity | 500 | |
| Diemension of Machine(mm) | 33000*10000*5000 | |
Product Feature of the Plastic Building Plate Extrusion Line:
1. Efficient production
The production line features high output and low energy consumption, significantly enhancing the production efficiency of the construction industry and shortening the project cycle.
2. Cost savings
Advanced extrusion technology and automated equipment are adopted to reduce production costs.
3. Environmentally friendly and sustainable
Plastic building formwork can be recycled and reused, meeting the requirements of green industry and reducing pollution to the natural environment.
4. The product has superior performance
The plastic formwork produced has the advantages of light weight, high strength, corrosion resistance, water resistance and fire resistance.
5. Flexible customization
The production line can customize formwork products of different specifications and performances according to customer needs, meeting the demands of various construction projects and providing diversified solutions.

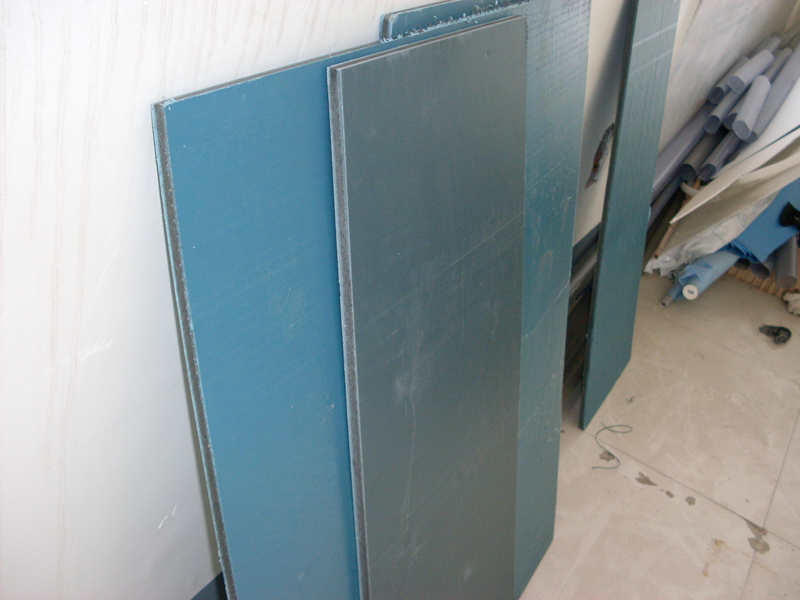

A description of the length and materials of the Plastic Building Plate Extrusion Line:
Template thickness:8-18mm
Template width:915-1220mm
Useful material:PE/PP
