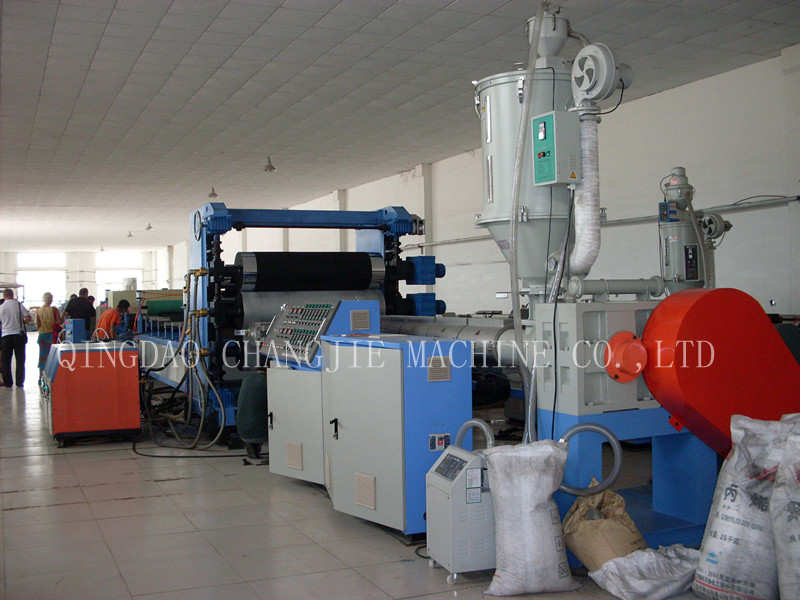

Production Line Composition Of PE Sheet Machine:
1. Raw material treatment: The raw materials undergo crystallization and drying treatment.
2. Material transportation and heating: The granular materials are heated, transported and compressed using an extruder.
3. Mixing and homogenization: The materials are dispersed and mixed, then melted and homogenized, and then pressurized and input into a filter and a parallel extrusion die.
4. Filtration and extrusion: After the melt is filtered, it is evenly distributed and mixed in the die, and then quantitatively and stably pressured extruded.

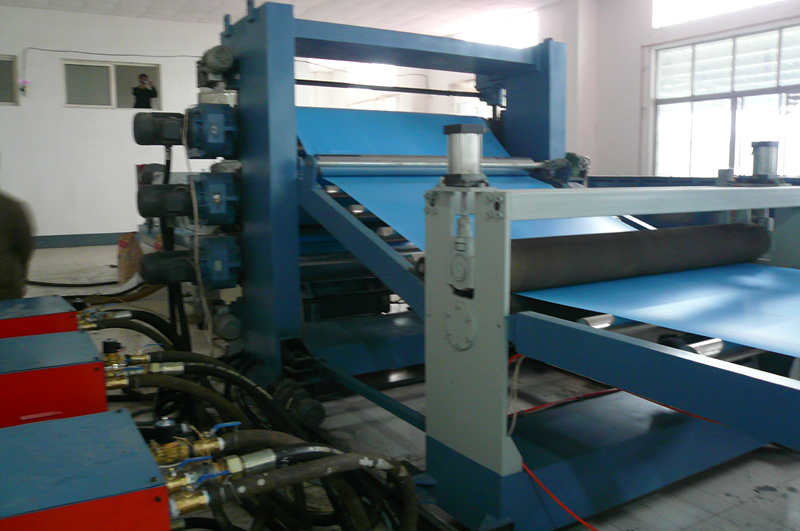

5. Tabletting and shaping: After passing through three rolls for pressing, cooling and shaping.
6. Edge cutting and winding: Cut the waste edges to the required width, then naturally cool and transport the sheet material, and finally through constant tension winding for forming.
Specifications and models of the PE Sheet Machine:
| Screw drive motor power | 30-315kw |
| Screw diameter | 45-150mm |
| Screw L/D ratio | 33/1-38/1 |
| Max screw speed | 110rpm |
| Max extruding product capacity | 30-600kg/h |
| Max production line speed | 10m/min |
| Products width | 600-2500mm |
| Products thickness | 0.6-20mm |
Product Application And Feature of the PE Sheet Machine:
Due to the excellent physical properties of the polyethylene films produced, as well as their good heat resistance, cold resistance, impact resistance and other properties, the products of the PE sheet production line are widely applied in various fields, including but not limited to:
· Packaging field: food packaging, medical device packaging, electronic product packaging, etc.
· Agricultural field: agricultural films, which can be used for covering, insulation, etc. in agricultural production.
· Construction field: construction films, water conservancy project films, etc.
· Other fields: can be used in freezing, food, printing, textile, electronics, instruments, pharmaceuticals, warehousing and other industries. It can also be used for cold preservation, insulation, energy conservation, dust prevention, windproof, moisture retention, anti-corrosion, fire prevention, anti-static, anti-strong light, anti-ultraviolet, sound insulation, etc., such as PVC transparent soft plates and soft curtain can be used as a replacement product for traditional cotton curtains, and can be used for protection and functional realization in various places.
A description of the length and materials of the PE Sheet Machine:
Width: 800-2100mm
