Technical highlight
·Special corrugated structure: Ensures the rigidity and flexibility of the pipe material, and is widely used in municipal, telecommunications engineering and other fields.

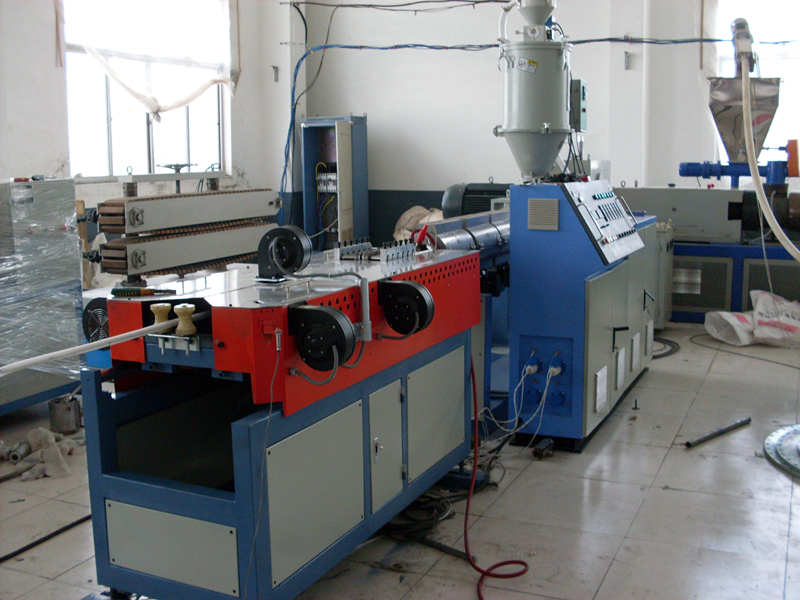

·extruder design :PVC production lines are typically equipped with conical twin-screw extruders, while PE production lines adopt high-quality single-screw extruders to enhance production efficiency and product quality.

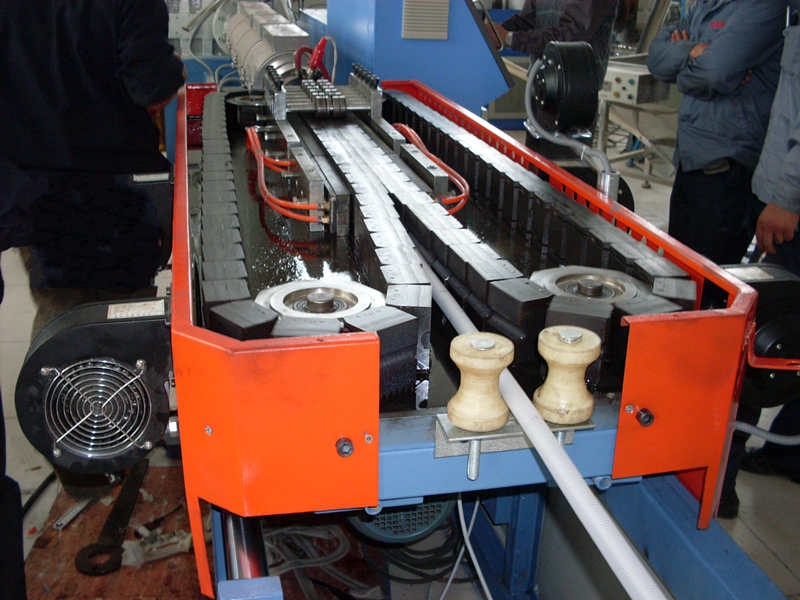

· Forming device: It includes forming molds, transmission and control systems, and adopts vacuum or pneumatic forming methods to meet the needs of different customers.

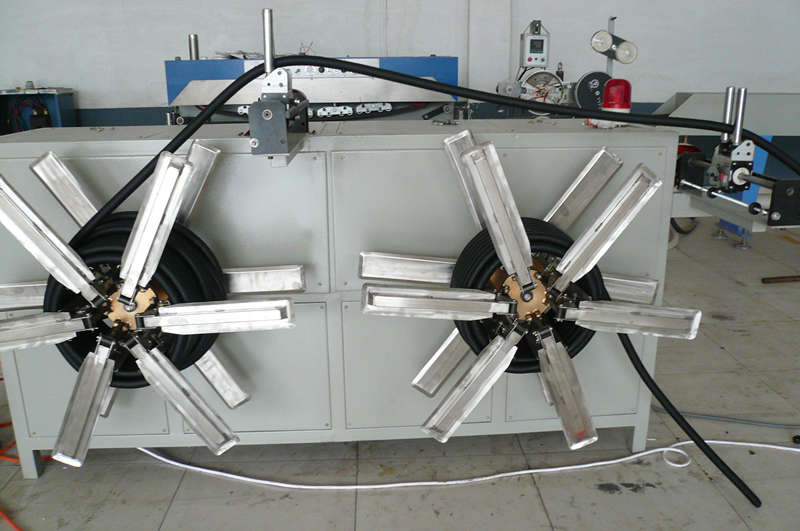

· Cutting and winding: The cutting unit has low noise, and the winding machine is easy to operate, improving the environmental friendliness of production.
| Extruder | SJ45/25 | SJ-65/25 | SJ-90/25 | SJ-120/25 |
| Range of pipe Dia. | 8-32mm | 16-63(mm) | 65-115(mm) | 115-175(mm) |
| Number of Mold Blocks | 50(Pairs) | 50(Pairs) | 50(Pairs) | 50(Pairs) |
| Speed of Mold Blocks | 1-12(m/min) | 1-10(m/min) | 1-8(m/min) | 1-6(m/min) |
| Dimensions(L*W*H)(Approx) | 8*1.15*1.3(m) | 10*1.25*1.5(m) | 13*1.35*1.7(m) | 16*1.55*2.2(m) |
| Total Weight(Approx) | 2.5(ton) | 3(ton) | 6(ton) | 9.5(ton) |
Product advantage
· Easy operation: Reduce the complexity of manual operation and improve production efficiency.
· Energy conservation and environmental protection: Advanced energy-saving technologies and environmentally friendly materials are adopted to reduce energy consumption and environmental pollution.
· Single-wall corrugated pipes are widely used in fields such as construction, drainage, agricultural irrigation, power and communication, and sports fields.
PE/PP/PVC Single Wall corrugated pipe machine
Pipe diameter:8-175mm
Useful material:PE/PP/PVC/EVA/PA
Produce speed:1-12m/min
