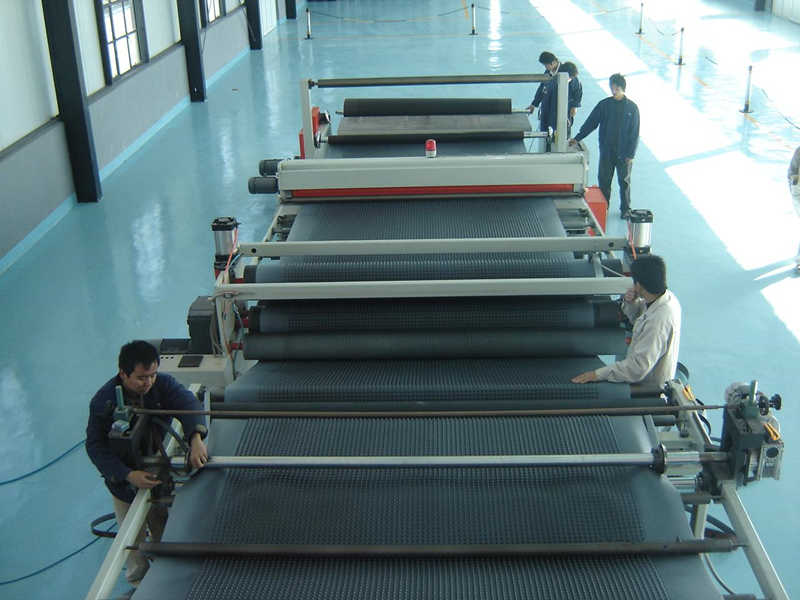

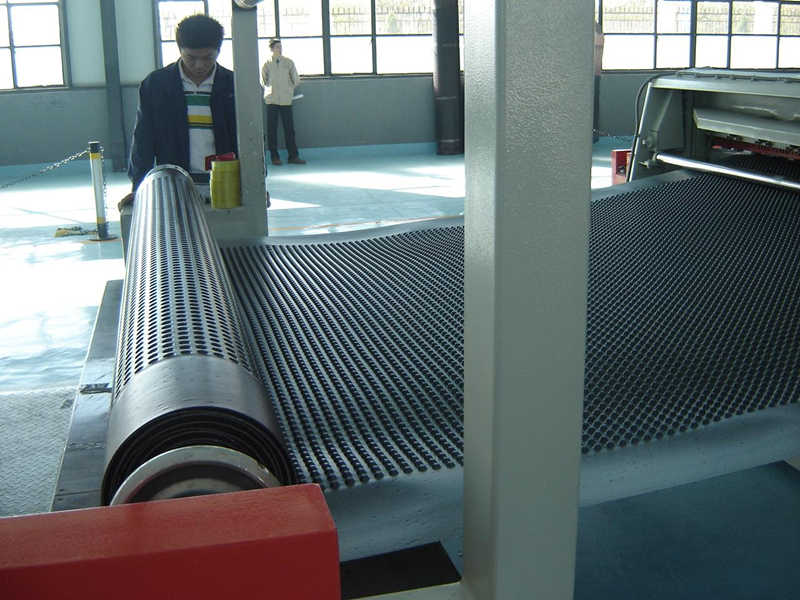

Description of HDPE Drainage Sheet Line:

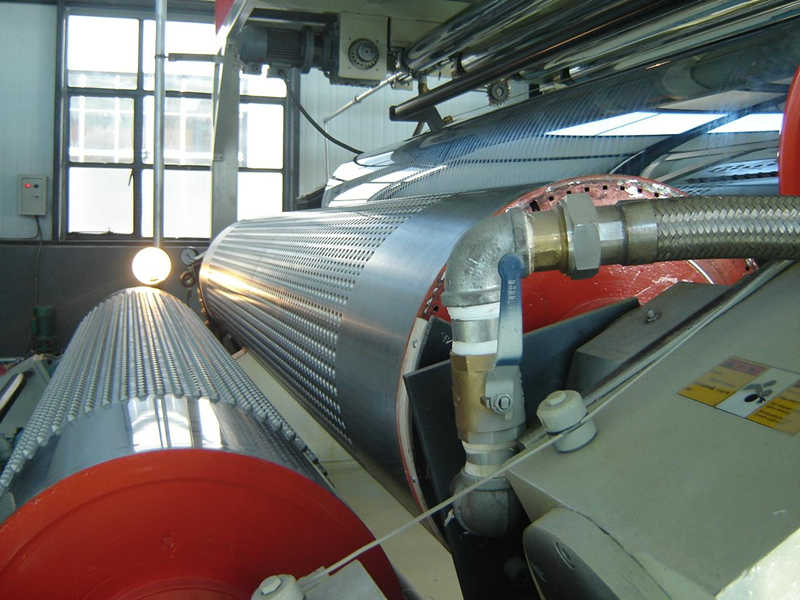

1.This unit uses granular materials such as HDPE, LLDPE, and MDPE (both new and recycled materials can be used) as raw materials. It adopts the process of screw extrusion and vacuum forming with concave-convex rollers to produce single-color and double-color drainage boards. The shapes are conical, columnar, and spherical shells, featuring three-dimensional space and certain support rigidity. Liquids and gases can flow and be discharged within them. So as to achieve the effect of prevention and drainage.
2.The drainage board production line manufactured by our company features uniform product thickness, high output, and the ability to produce drainage boards of various specifications with one machine (using the same forming roller, by replacing different convex nails on the convex roller).
Specifications and models of the HDPE Drainage Sheet Line:
| screw drive motor power(kw) | 30-315 |
| screw diameter(mm) | 45-150 |
| screw L/D ratio(mm) | 33/1-38/1 |
| Screw max. speed(rpm) | 110 |
| Max. production line speed(m/min) | 1-10 |
| products width(mm) | 300-5000 |
| products thickness(mm) | 0.2-20 |
Product application of the HDPE Drainage Sheet Line:
1.Landscape engineering: It is used for drainage in parks, squares and other places.
2. Construction engineering: It is applied to drainage in basements, roof greening and other areas.
3. Transportation engineering: It is used in drainage systems of highways, Bridges, etc.
4. Municipal engineering: such as urban drainage systems, etc.
5. Decoration engineering: It plays a drainage role in interior decoration.
A description of the length and materials of the HDPE Drainage Sheet Line：
HDPE drainage sheet line
Width: 1000-3000mm
Thickness: 5-30mm
Certification: CE and ISO9001
Warranty: 1 year
