Main Process Of The Geocell Production Line:
1. Raw material preparation: Select high-density polyethylene (HDPE) and other high-molecular materials, mix and stir them according to precise formula proportions, laying the foundation for subsequent molding.

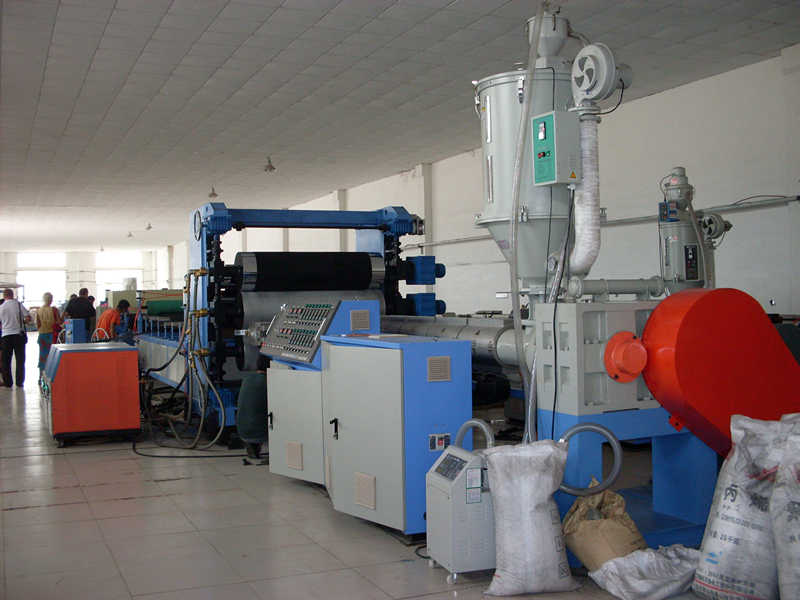

2. Extrusion molding: After the raw materials are heated and melted, they are forcefully extruded through precise molds into continuous plastic strips, which then cool and form solid sheets.
3.The ultrasonic welding step is crucial. We use fully automatic equipment to weld the sheet material nodes through high-frequency vibration, which enables the materials to instantly fuse into a honeycomb-like three-dimensional grid.
4.There is also the quality inspection process, and we are thorough in this aspect. Every piece of product must undergo both manual and machine-based inspections. Indicators such as solder joint strength, grid integrity, and tensile strength need to be checked thoroughly.
5. Packaging and rolling: The intelligent mechanical arm automatically rolls the sheets into bundles, labels them, and packs them in boxes, making the finished products easy to transport and lay out.
Specifications and models of the Geocell Production Line:
| Model: | SZJP-1300 | SZJP-1500 | SZJP-1800 |
| Screw Diameter(mm): | 105 | 110 | 110 |
| Output(kg/h): | 150 | 200 | 250 |
| Die Width(mm): | 1400 | 1600 | 1800 |
| Net Width of Sheet(mm): | 1200 | 1400 | 1600 |
| Sheet Thickness(mm): | 0.3-1.5 | 0.3-1.5 | 0.3-1.5 |
| Total Power(kw): | 100 | 120 | 140 |
| Dimension(m): | 12x1.8x2.5 | 14x2x2.5 | 16x2.2x2.5 |
Product Application of the Geocell Production Line:
1. -Subgrade reinforcement: Lay it in the road or railway subgrade, then fill it with soil and stones, and a composite structure can be formed. This can significantly enhance the bearing capacity of the subgrade, reducing settlement by over 40%. As a result, the lifespan of the road is naturally prolonged.
-- Soft soil treatment:This way, the construction period can be shortened and the cost can be significantly reduced. Especially in wetland construction, the effect is particularly obvious.
2. In the field of water conservancy protection projects, its performance has also been excellent.
- Riverbank stabilization: Fix it on the riverbank, then fill it with stones, and a protective layer against erosion can be formed. This not only prevents soil erosion but also helps promote ecological restoration.
3. Slope Management
-Slope Stability: Form a stepped retaining wall by laying grids, fill with planting soil and combine with anchoring technology to quickly achieve soil stabilization, drainage, and vegetation greening.
-Desert Management: Constraint the movement of sand, creating basic conditions for vegetation growth.
A description of the length and materials of the Geocell Production Line:
1.5mm max thickness of geocell
1.6m max net width of geocell
250kg/h max output
